Product Details:
|
| Output Type: | Single | Input Voltage: | 110V 220V |
|---|---|---|---|
| Output Voltage: | 24V | Output Frequency: | 50/60hz |
| Output Current: | 3A | Application: | CCTV Camera Or LED |
| Warranty: | 5 Years | Protection: | Overvoltage Overload Short Circuit Overtemperature |
| Type: | Constant Voltage | Efficiency: | 92.5% |
| Item: | TT |

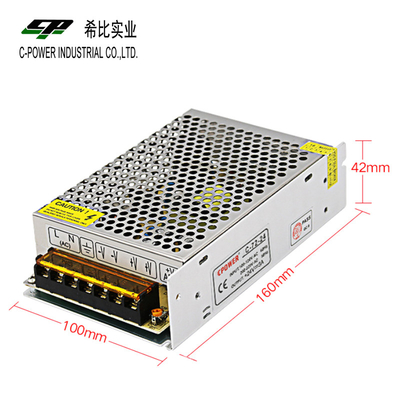

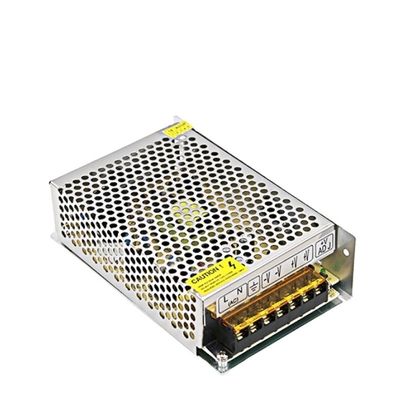

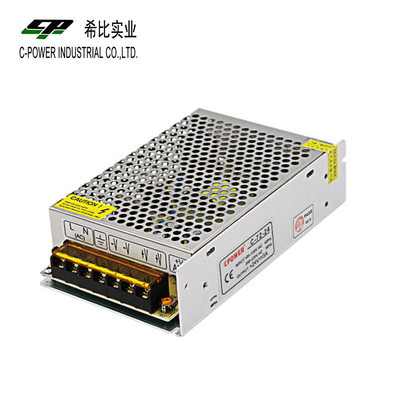

24V 3A DC Power Supply
Features:
| OUTPUT | DC VOLTAGE | 24V |
| RATED CURRENT | 3A | |
| CURRENT RANGE | 0~3A | |
| RATED POWER | 72W | |
| RIPPLE & NOISE(max). | 150mVp-p | |
| VOLTAGE ADJ.RANGE | 0-5V | |
| VOLTAGE TOLERANCE | ±1.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGULATION | ±0.5% | |
| SETUP,RISE TIME | 1000ms, 50ms/230VAC 1000ms,50ms/115VAC at full load | |
| HOLD UP TIME(Typ.) | 20ms/230VAC 16ms/115VAC at full load | |
| INPUT | VOLTAGE RANGE | 90 ~ 132VAC / 180 ~ 264VAC by switch 254 ~ 370VDC |
| FREQUENCY RANGE | 47~63HZ | |
| EFFICIENCY(Typ.) | 87% | |
| AC CURRENT(Typ.) | 4.5A/115VAC 2.5A/230VAC | |
| INRUSH CURRENT(Typ.) | 40A/115VAC 55A/230VAC | |
| LEAKAGE CURENT | <3.5mA / 240VAC |
1,How many voltage can you supply?
-- 5V, 6.5V,9V 10V,12V, 13.5V, 15V, 18V, 19V, 24V 36V, 48V (depend on items)
2,How many current can you supply?
-- 0.5A, 1A,1.25A, 1.5A, 2A, 2.5A,3A, 3.42A,4A, 5A, 6A, 10A, 15A 20A, 30A, 40A, 50A, 60A
3,How about the quality?
-- We have the best professional and experienced engineer and strict QA and QC system. Repair rate under 1.1%-0.2%
-- Strong and solid carton for overseas shipping;
-- Packages can be OEM or ODM.
-- Delivery time: 1-2 days for stock, about 1 week if no stock.
-- Can ship by air or by sea or send to buyers' shipper/partners.
Contact Person: Mr. Zhang
Tel: +8617337136440
