Electric Lock Power Supply Wide Voltage 12V 3A UPS for Security / Monitoring / Alarm

 AC 110V to 240V uninterrupted power supply 12v 3a  for access control  electric lock

• Description:

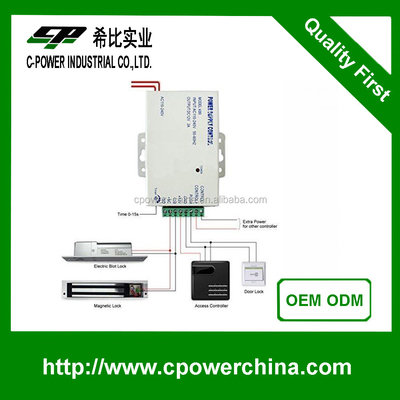

• This is a 110V--240V Access Control Power supply, it has anti-interference ability, provide very stable and reliable output in a various applications such as lock control/ controller control/ exit button/ RFID-ID Reader.etc.

• Features:
• It controls electric lock directly
• Can reduce the load of access controller, save wiring to reduce the hidden trouble
• Based delay control circuit, lock time can be in 0-15 seconds
• Automatic protection function, unexpected situations such as when the power supply short-circuits occurs, the power may be temporarily disconnected or the fuse auto insurance line off

• Specifications:
• Input Voltage: 110 - 240V
• Input Frequency: 50- 60Hz
• Output Voltage: DC 12V
• Output Current: 3A
• Power: 30W
• Output voltage trim range: ±10%~ ±15%
• Insulation voltage: Junior/sub-polar inter-1500v ac, primary/shell between 1500V AC, subpolar/shell between 500V AC
• Hold time: full load typically 20ms
• Overload protection: All output in a short circuit, overload is protected; Power output of 0-15 seconds delay locks.
• Size: Approx. 10.5 x 9.1 x 3.4cm / 4.1 x 3.6 x 1.3 inches

• Included:
• 1 x Access Control Power Supply
• 1 x User Manual
•

1,How many voltage can you supply?

-- 5V, 6.5V,9V 10V,12V, 13.5V, 15V, 18V, 19V, 24V 36V, 48V (depend on items)

2,How many current can you supply?

-- 0.5A, 1A,1.25A, 1.5A, 2A, 2.5A,3A, 3.42A,4A, 5A, 6A, 10A, 15A 20A, 30A, 40A, 50A, 60A

3,How about the quality?

-- We have the best professional and experienced engineer and strict QA and QC system. Repair rate under 1.1%-0.2%

4,Can we be your distributor?

-- We are looking for distributor and agent all over the world for switching power supply. Should you any interest, please feel free to send your message or inquiry.

5,What’s kind of payment you accept?

-- T/T, L/C, Paypal, Western Union,ect

6,What’s your MOQ?

-- 3000pcs, except for sample order or trial order.

1. How's your power supply and adapter quality?

-- 100% burn-in test, full-round tests. All products are CE approved, We promise less than 1% defetive within one year (history defetive rate is around 0.2% defetive in a year).If within 1% defetive, just show us inner unique serial number of defetive products and we can replace for free in the next order;  if defective rate is higher than 5% because of product quality problem, will promise you to replace for free .

2. How's your factory production capacity?

-- we have around 300 workers and 6 automatical production lines; we can produce 10000pcs per day.

3. What's the shipping ways you can provide.

--We can ship by air or by sea from the port as requested.
