Product Details:
|
| Input Voltage: | 110v/220v | Output Voltage: | 12V |
|---|---|---|---|
| Output Frequency: | 50/60hz | Output Current: | 50a |
| Product Name: | CCTV Power Supply | Application: | CCTV System |
| Material: | Aluminum Alloy | Certificate: | CE |
| Current: | 5A | Color: | Silver |
| Voltage: | 220v Input | Output Voltage: | 12v Dc |
| Efficiency:: | 82% | Protection: | Over-voltage |
Feature
1.Universal AC input / full range
2.Input Frequency 47-63Hz
3.low products cost, high quality level
4.100% aging test
5.AC input Voltage range: 110/220VAC±20%, Selected by switch
6. Short circuit / Overload Protection
7. Soft-start current , reduce the AC input Inrush
8. Installed with EMI filter, minimun wave
9. Small size, light weight, long life , high efficiency

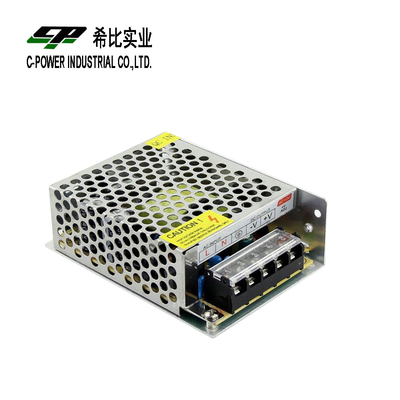

| Model | CP-100-12 | |
| Output | DC output voltage | 12V |
| Output voltage tolerance | ±1% | |
| Rated output current | 5A | |
| Output current | 0~9A | |
| Output power | 100W | |
| Ripple and noise | 80mVp-p | |
| DC adjustable range | ±10% | |
| Setup rise hold up time | 50ms | |
| Input | Input voltage range | 85~132VAC 170~264VAC 47~63Hz, 240~370VDC |
| AC input current | 6.5A/115V 4A/230V | |
| Efficiency | 82% | |
| AC inrush current | Cold start current 25A/115V 50A/230V | |
| Leakage current | <3.5mA/240VAC | |
| Protection characteristic | Over load protection | 105%~135%rated output power start the over load protection |
| Protection mode : cut off the output,auto-recovery | ||
| Over-voltage protection | 115%-135% cut off the output,auto-recovery | |
| Over-temp protection | Rectifier≥80°Ccut off the output ,auto-recovery | |
| Fan ON/OFF control | ≥55°C Fan start ,≤45°CFan off | |
| Environment | Working temperature | -10°C~+60°C;20%~90%RH(please refer to the Load deduction curve) |
| Security | Withstand voltage | Between input and output:1.5KVACThe input and ground : 1.5KVACThe output and ground :0.5KVAC |
| Insulation resistance | Between input and output:The input and ground, the output and ground: 100M 0hms /500VDC | |
Package detail: 40PCS/ CTN 22Kg
CTN size: 51*25*42cm
Shiping: UPS,DHL,TNT,FEDEX ,EMS etc. by Air, By sea based on your requirement
1,How many voltage can you supply?
-- 5V, 6.5V,9V 10V,12V, 13.5V, 15V, 18V, 19V, 24V 36V, 48V (depend on items)
2,How many current can you supply?
-- 0.5A, 1A,1.25A, 1.5A, 2A, 2.5A,3A, 3.42A,4A, 5A, 6A, 10A, 15A 20A, 30A, 40A, 50A, 60A
3,How about the quality?
-- We have the best professional and experienced engineer and strict QA and QC system. Repair rate under 1.1%-0.2%
4,Can we be your distributor?
-- We are looking for distributor and agent all over the world for switching power supply. Should you any interest, please feel free to send your message or inquiry.
5,What’s kind of payment you accept?
-- T/T, L/C, Paypal, Western Union,ect
6,What’s your MOQ?
-- 3000pcs, except for sample order or trial order.
