Product Details:
|
| Output Type: | Single | Input Voltage: | 110v 220v |
|---|---|---|---|
| Output Voltage: | 12VDC | Output Frequency: | 50/60Hz |
| Output Current: | 30a | Application: | LED Lighting |
| Warranty: | 2 Years | Protection: | Over-voltage |
| Efficiency: | 90% | Setup Rise Hold Up Time: | 200ms,100ms,20ms |
| Temperature Coeffi Cient: | ±0.03%/°C (0~50°C ) | Service: | Customised OEM ODM |
| Price: | Factory Selling | Style: | 30a Switching Power Supply |

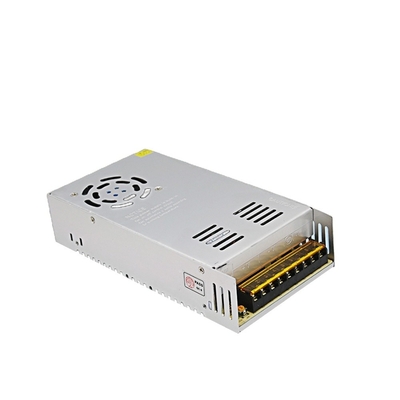

12V 30A Power Supply
1. AC input range selectable by switch
2. Protections: Short circuit / Overload / Over voltage / Over temperature

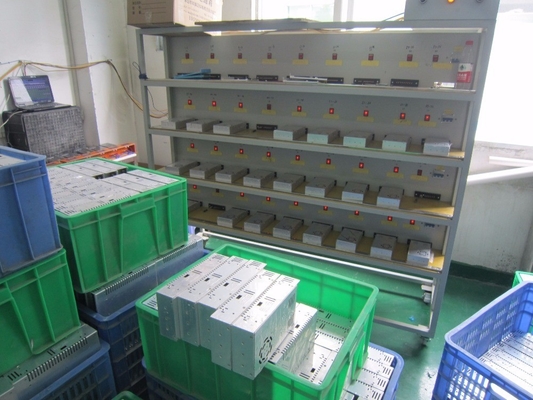

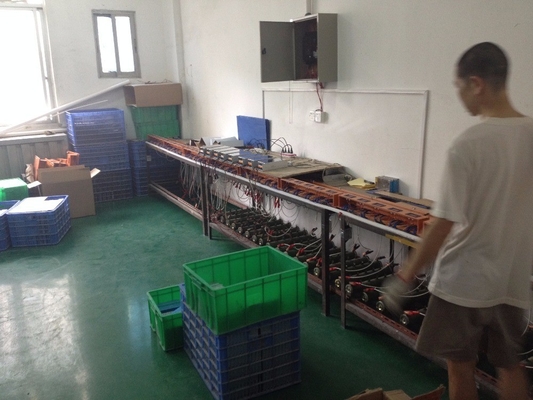

3. 100% full load burn-in test
4. Low cost, high reliability
5. 2 years warranty

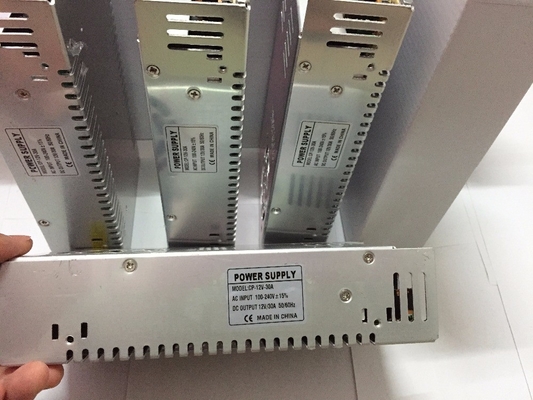

12V 30A Switch Power Supply
| INPUT | AC voltage range | 80~135VAC/170~264VAC selected switch 47~63Hz 240~380VDC | |||
| Current | 7.5A/115V 4.5A/230V | ||||
| Efficiency | 79% | 82% | 83% | 84% | |
| AC Inrush current | 30A/115V 50A/230V | ||||
| Leakage current | <3.5mA/240VAC | ||||
| PROTECTION | Overload | 105%~150% Type:pulsing hiccup shutdown Resete:auto recovery | |||
| Over-voltage | 115%~135% | ||||
| 5.75-6.75V | 13.8-16.2V | 27.6-32.4V | 55.2-64.81V | ||
| High temperature | ERH3 ≥ 55°C Fan on,≤ 45°C Fan off,≥ 70°C,Cut down output(5~15V) | ||||
| SAFYE | Setup rise hold up time | 200ms,100ms,20ms | |||
| Vibration | 10~500Hz,2G 10min./1cycle,Period for 60min,EACH AXES | ||||
| Withstand voltage | Input and output interval,1.5KVAC,Input and enclosure,1.5KVAC,Output and enclosure,0.5KVAC | ||||
| Isolation resistance | Input and output interval,Input and enclosure,Output and enclosure,500VAC/100M Ohms | ||||
| ENVIRONMENT | Temperature coeffi cient | ±0.03%/°C (0~50°C ) | |||
| Working temperature and humidity | -10°C~+60°C,20~90%RH | ||||
| Store temperature and humidity | -20°C~+85°C,10~95%RH | ||||

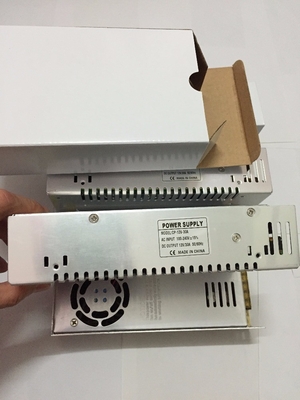

1. Individual box in white box .
2. Strong and solid carton for overseas shipping;
3. Packages can be OEM or ODM.
4. Delivery time: 1-2 days for stock, 1-2 weeks if no stock.
5. Can ship by air or by sea or send to buyers' shipper/partners.
1,How many voltage can you supply?
-- 5V, 6.5V,9V 10V,12V, 13.5V, 15V, 18V, 19V, 24V 36V, 48V (depend on items)
2,How many current can you supply?
-- 0.5A, 1A,1.25A, 1.5A, 2A, 2.5A,3A, 3.42A,4A, 5A, 6A, 10A, 15A 20A, 30A, 40A, 50A, 60A
3,How about the quality?
-- We have the best professional and experienced engineer and strict QA and QC system. Repair rate under 1.1%-0.2%
4,Can we be your distributor?
-- We are looking for distributor and agent all over the world for switching power supply. Should you any interest, please feel free to send your message or inquiry.
5,What’s kind of payment you accept?
-- T/T, L/C, Paypal, Western Union,ect
6,What’s your MOQ?
-- 3000pcs, except for sample order or trial order.
1. How's your power supply and adapter quality?
-- 100% burn-in test, full-round tests. All products are CE approved, We promise less than 1% defetive within one year (history defetive rate is around 0.2% defetive in a year).If within 1% defetive, just show us inner unique serial number of defetive products and we can replace for free in the next order; if defective rate is higher than 5% because of product quality problem, will promise you to replace for free .
2. How's your factory production capacity?
-- we have around 300 workers and 6 automatical production lines; we can produce 10000pcs per day.
3. What's the shipping ways you can provide.
--We can ship by air or by sea from the port as requested.
