Product Details:
|
| Output Power: | 101 - 200W | Output Type: | Single |
|---|---|---|---|
| Input Voltage: | 110V/220V AC | Output Voltage: | 12V DC |
| Output Frequency: | 50/60HZ | Output Current: | 15A |
| Warranty: | 3 Years | Application: | CCTV |
| Efficiency: | 82% | Protections: | Shortcuit Overtemp Overload Overtemp |
| Type: | Constant Voltage | Color: | Silver |
| Power: | 180W | Material: | Aluminum Alloy |

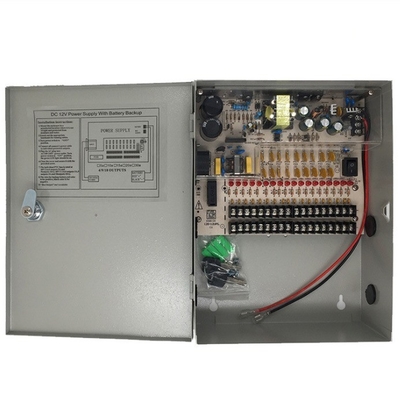

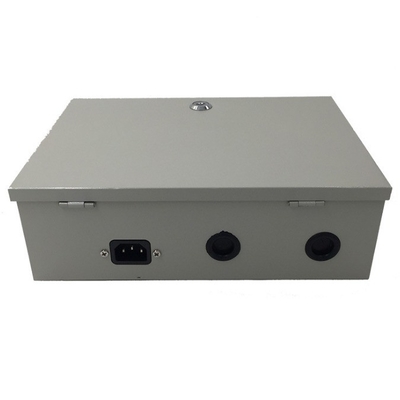

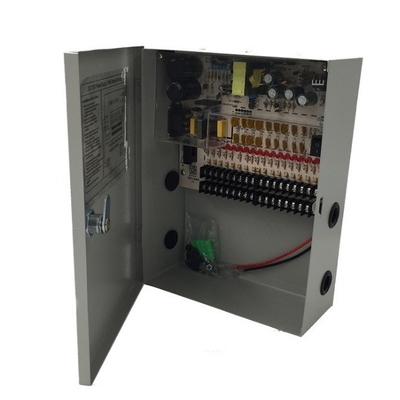

Designed for powering up to a maximum of eighteen12V DC CCTV cameras. Each output is individually fused and can be set on or off via internal jumpers. There is a host of protection on each output to prevent spikes and surges damaging the connected cameras. Separate screw terminals are provided for each circuit. Overall output voltage can be internally adjusted from 11-14V DC. The design includes output current limiting and over voltage protection. Overall total max load is 10A. Housed in a sturdy compact steel enclosure with lockable door. Field wiring access is via a rear panel cutout or 3 conduit knockouts on the side.
Input:100~240v ac
Output:12v dc 15a
Power:180w
Channles:18
Safety Specifications :
over voltage protection: 120%min
over current protection: 120%min
over protection
Short-circuit protection: automatic recovery \
Load regulation: ±5%
Green Circuit Design
High Efficiency
