Product Details:
|
| Output Type: | DC | Connection: | Plug In |
|---|---|---|---|
| Certificate: | CE | Output: | 12V 1A 12v 2a |

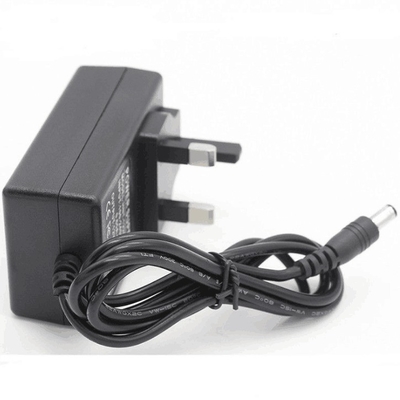

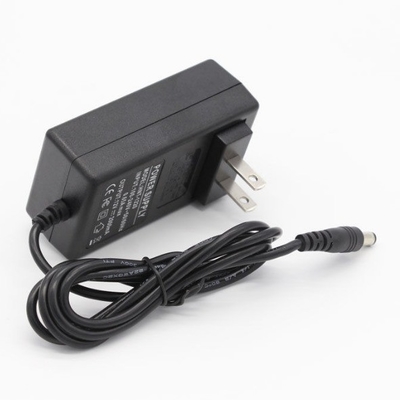

| Output Voltage: | 12VDC | Product Name: | Class 2 Power Supply Adapter |
| Color: | Black | Type: | Wall Plug |
| Warranty: | 3 Years | Usage: | Electronic Products |
| Brand: | C-power | Input Voltage: | AC100~240V |
Shenzhen C-Power Industrial Co.,ltd.
1) Input: AC100V-240V
b) Frequency: 50/60Hz 1A
c) Line regulation range: ±0.5max.
2) Output: 12V2A 12v 2000mA 24w
a) Line regulation range: ±0.5% max.
b) Ripple and noise (mVp-p): <1% of output voltage
c) Adjustable range of output voltage: +5%, -3%
d) Start-up time: ≤1s (AC input 240V and Io=100%)
e) Hold-up time: ≥20ms (AC input 240V and Io=100%)
3) Insulation resistance
Input---output: ≥50Mω
4) Environmental requirements:
a) Operating temperature: 0---40°C
b) Operating humidity: 10-90% RH (no freezing dew)
c) Storage temperature: -20----85°C
d) Storage humidity: 10-95% RH (no freezing dew)
5) Elevation: <3000m
100pcs/ctn
white retail box
yellow hard paper carton
It also can be sent by sea or by Air
1,Promotely reponse and fast production leadtime 2,Best pre-sale & after-sale service
3,Reliable products quality and good reputation 4,High manufacturing capacity
5.OEM/ODM
1,How many voltage can you supply?
-- 5V, 6.5V,9V 10V,12V, 13.5V, 15V, 18V, 19V, 24V 36V, 48V (depend on items)
2,How many current can you supply?
-- 0.5A, 1A,1.25A, 1.5A, 2A, 2.5A,3A, 3.42A,4A, 5A, 6A, 10A, 15A 20A, 30A, 40A, 50A, 60A
3,How about the quality?
-- We have the best professional and experienced engineer and strict QA and QC system. Repair rate under 1.1%-0.2%
4,Can we be your distributor?
-- We are looking for distributor and agent all over the world for switching power supply. Should you any interest, please feel free to send your message or inquiry.
5,What’s kind of payment you accept?
-- T/T, L/C, Paypal, Western Union,ect
6,What’s your MOQ?
-- 3000pcs, except for sample order or trial order.
Contact Person: Mr. Zhang
Tel: +8617337136440
