Product Details:
|
| Output Type: | Single | Input Voltage: | 220v 110v |
|---|---|---|---|
| Output Voltage: | 12V | Output Frequency: | 50/60Hz |
| Output Current: | 5A | Application: | Led Strip Or Security Camera |
| Warranty: | 3Years | Type: | Constant Voltage Power Supply |
| Protections: | Short Circuit Overload Overvolt Overtemp | Efficiency: | 90% |
| Service: | Customised OEM ODM | DC Jack: | 5.5*2.5mm |
| DC Plug: | Eu ,us, Uk ,au,cn,ect |
Free shipping 1000pcs to worldwide by sea ac dc adapter 12v 5a dc switching power supply for Led lights or Security camer
MOQ above 1000PCS Quantity 12V 5A ,We will offer free shipping for our customer by sea .
a) Input: AC100V - 240V wide worldwide volt input
b) Frequency: 50/60Hz
c) Line regulation range: ±0.5max.
2) Output: 12V DC 5A
a) Line regulation range: ±0.5% max.
b) Ripple and noise (mVp-p): <1% of output voltage
c) Adjustable range of output voltage: +5%, -3%
d) Start-up time: ≤1s (AC input 240V and Io=100%)
e) Hold-up time: ≥20ms (AC input 240V and Io=100%)
3) Insulation resistance
Input---output: ≥50mΩ, DC500V
4) Environmental requirements:
a) Operating temperature: 0---40°C
b) Operating humidity: 10-90% RH (no freezing dew)
c) Storage temperature: -20----85°C
d) Storage humidity: 10-95% RH (no freezing dew)
5) Elevation: <3000m

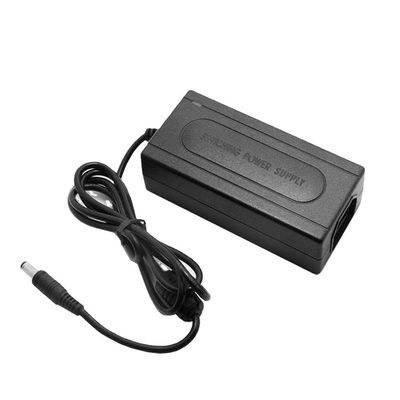

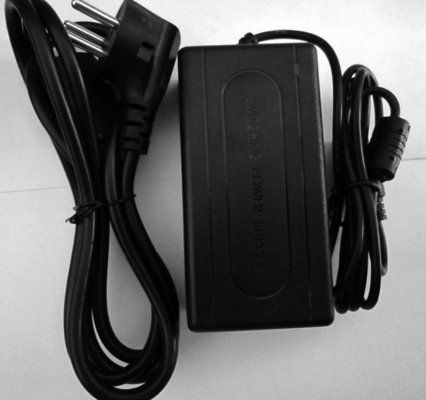

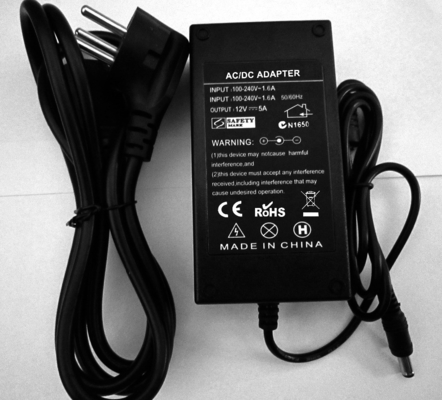

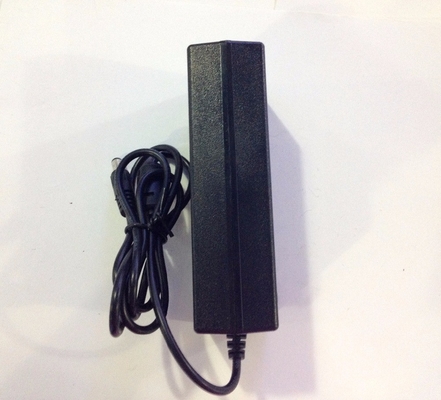

| Product Name: | 12V 5A AC to DC Power Adapter |
| Input: | 100V~240V, 50~60Hz, 1A (Works Worldwide) |
| Output: | 12V 5A 60W |
| DC plug: | eu , us , uk , au , cn , ect |
| Outlet: | 2 or 3 prong |

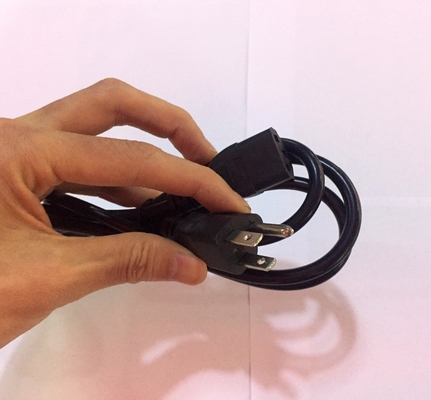

| Power Cord: | US/EU/AU/UK/CN |
| Net Weight: | 260G |
| Size: | 102mm x 43mm x 27mm (L x W x H) |
| Color: | Black |
| Material for PCB & Housing: | ABS+PC+Fireproofing marterial |

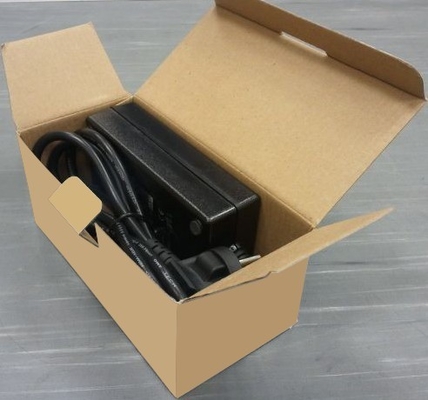

| Packing: | Brown box( 50pcs/ctn); 49*39*34CM(L x W x H) for master carton size |
| Delivery Date: | Within 2-3 workdays after confirm the payment |
| Warranty: | 2 years |
| Approved: | CE,FCC,RoHS |
| Protection: | SCP,OVP,OCP,OTP |
| Test: | Temperature test; Vibration test; Drop-Test;Over charging and discharging test |
| Line Regulation: | +/-5% |
| Load Regulation | +/-5% |
| Normal Operating Temperature and Humidity: | Operating Temperature: 0°C to 45°C |
| Humidity: 10% to 90%RH | |
| Storage Temperature and Humidity: | Storage Temperature: -20°C to 80°C |
| Humidity: 10% to 90%RH |
1,Promotely reponse and fast production leadtime 2,Best pre-sale & after-sale service
3,Reliable products quality and good reputation 4,High manufacturing capacity
1,How many voltage can you supply?
-- 5V, 6.5V,9V 10V,12V, 13.5V, 15V, 18V, 19V, 24V 36V, 48V (depend on items)
2,How many current can you supply?
-- 0.5A, 1A,1.25A, 1.5A, 2A, 2.5A,3A, 3.42A,4A, 5A, 6A, 10A, 15A 20A, 30A, 40A, 50A, 60A
3,How about the quality?
-- We have the best professional and experienced engineer and strict QA and QC system. Repair rate under 1.1%-0.2%
