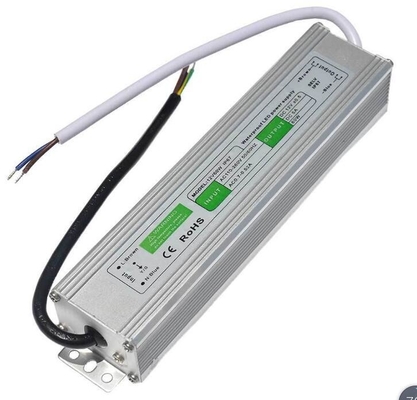

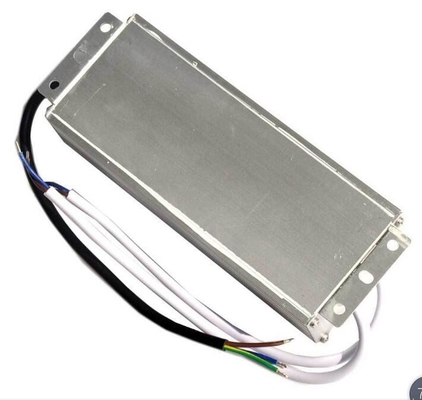

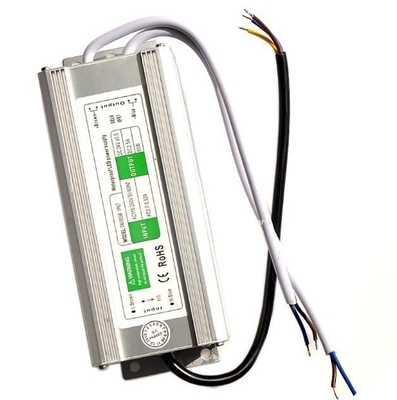

Outdoor Lighting Transformer DC 24V 12V 60w Waterproof LED Driver with 86% Efficiency

Large Image : Outdoor Lighting Transformer DC 24V 12V 60w Waterproof LED Driver with 86% Efficiency

Product Details:

Place of Origin:	Guangdong, China
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	5 pieces
Price:	$7.80/pieces 5-499 pieces
Packaging Details:	Standard package

Contact Now

Outdoor Lighting Transformer DC 24V 12V 60w Waterproof LED Driver with 86% Efficiency

Description

Input Voltage:	110v/220v	Output Voltage:	12V
Output Frequency:	50/60hz	Output Current:	5a
Color:	Silver, Silver White	Application:	LED Lighting
Warranty:	3 Years	Product Name:	LED Dimmable Driver
Protection:	Short Circuit	Type:	Constant Voltage
Efficiency:	86%	Name:	IP67 Led Power
Brand:	C-Power	Output Power:	60w

Product Description

Output Voltage: DC 12V,DC 24V

Material: Aluminum

IP Grade: IP67 Waterproof

Working Temperature:-45 to 49degree

Output Voltage: DC 12V,DC 24V

Material: Aluminum

IP Grade: IP67 Waterproof

Working Temperature:-45 to 49degree

Output	DC Voltage	12V	24V
	Rated Current	5A	2.5A
	Current Range	0~5A	0~2.5A
	Rated Power	60W	60W
	Ripple&Noise	120Vp-p	150Vp-p
	Set up,Rise time	500ms, 20ms / 230VAC
Input	Voltage Range	170~265VAC 47~62Hz
	Efficiency	84%	85%
	Ac Current	0.5A/230VAC
	Leakage Current	0.25mA / 240VAC
	Inrush Current	Cold Start <40A at 230VAC
Protection	Over Current	110~140% rated output power
	Protection Type	Hiccup mode, recovers automatically after fault condition is removed
	Over Voltage	Hiccup mode, recovers automatically after fault condition is removed
Environment	Working Temp&Humidity	-30-60°C 20-90% RH
	Storage Temp&Humidity	-40-80°C 10-90%RH
Safety&EMC	Safety Standards	IP67 Approved ,Design Refer to: EN60950
	Withstand Voltage	I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
	Isolation Resistance	I/P-O/P:>100M Ohms / 500VDC
	EMC Emission	Compliance to EN55022 (CISPR22) Class B,EN61000-3-2 Class A, EN61000-3-3
	EMC Immunity	Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, Criteria A

Special Note

This Power Supply Unit "DOES NOT" come with installation instruction, wiring cable,on/off switch, or screws.

Professional Installation of qualified electrician is highly recommended.

Note:

1.This is a DC12V or DC 24V (your choose)Power Supply Unit for professional use on LED lightning, Security Surveillance System, CCTV Security Camera, IP Camera, and etc.

2.Safety design with shortage protection, overload protection and auto voltage switching.

3.Regulated voltage & current output. This is a perfect choice to use as a LED Driver for all type of LED lighting 3.without flickering light & ensue the life span of your LED.

4.Full range of current output is possible for LED lighting with dimmable function.

About Calculate Method:

If Your LED Strip 60LEDs/m, and each LED 0.2W, then calculate max led Strip Length: 0.2W/LED × 60LEDs/m=12W/m, 24W(this listing)÷12W/m=2m,

So, Support the LED Strip(60LEDs/m, 0.2W/LED) Length (Max)=2m

Special Note:

This Power Supply Unit "DOES NOT" come with installation instruction, on/off switch, or screws.

Professional Installation of qualified electrician is highly recommended

Packaging & Shipping

Outdoor Lighting Transformer DC 24V 12V 60w Waterproof LED Driver with 86% Efficiency 1

Our Services

Outdoor Lighting Transformer DC 24V 12V 60w Waterproof LED Driver with 86% Efficiency 2

1,Promotely reponse and fast production leadtime 2,Best pre-sale & after-sale service

3,Reliable products quality and good reputation 4,High manufacturing capacity
