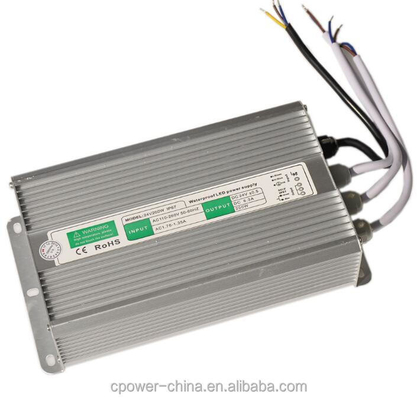

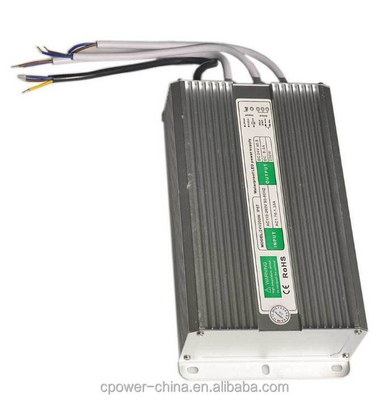

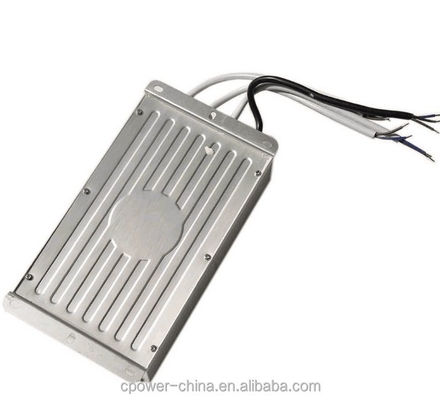

Product Details:
|
| Output Power: | 101 - 200W | Output Type: | Single |
|---|---|---|---|
| Input Voltage: | 220V | Output Voltage: | 24V |
| Output Frequency: | 47-63HZ | Output Current: | 8.33A |
| Application: | LED Lighting | Warranty: | 3 Years |
| Product Name: | LED Dimmable Driver | Protection: | Over-voltage |
| Type: | Constant Voltage | Power: | 200w |
| Efficiency: | 86% | Name: | IP67 Led Power |
| Brand: | C-Power | Port: | Shenzhen |
Output | DC Voltage | 12V | 24V |
Rated Current | 16.5A | 8.3A | |
Current Range | 0~16A | 0~8A | |
Rated Power | 200W | 200W | |
Ripple&Noise | 120Vp-p | 150Vp-p | |
Set up,Rise time | 500ms, 20ms / 230VAC | ||
Input | Voltage Range | 170~265VAC 47~62Hz | |
Efficiency | 84% | 85% | |
Ac Current | 0.5A/230VAC | ||
Leakage Current | 0.25mA / 240VAC | ||
Inrush Current | Cold Start <40A at 230VAC | ||
Protection | Over Current | 110~140% rated output power | |
Protection Type | Hiccup mode, recovers automatically after fault condition is removed | ||
Over Voltage | Hiccup mode, recovers automatically after fault condition is removed | ||
Environment | Working Temp&Humidity | -30-60°C 20-90% RH | |
Storage Temp&Humidity | -40-80°C 10-90%RH | ||
Safety&EMC | Safety Standards | IP67 Approved ,Design Refer to: EN60950 | |
Withstand Voltage | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||
Isolation Resistance | I/P-O/P:>100M Ohms / 500VDC | ||
EMC Emission | Compliance to EN55022 (CISPR22) Class B,EN61000-3-2 Class A, EN61000-3-3 | ||
EMC Immunity | Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, Criteria A | ||
1,Promotely reponse and fast production leadtime 2,Best pre-sale & after-sale service
3,Reliable products quality and good reputation 4,High manufacturing capacity
