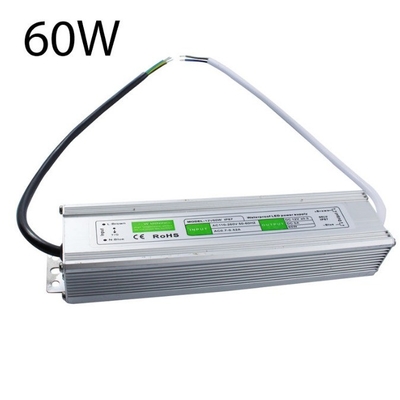

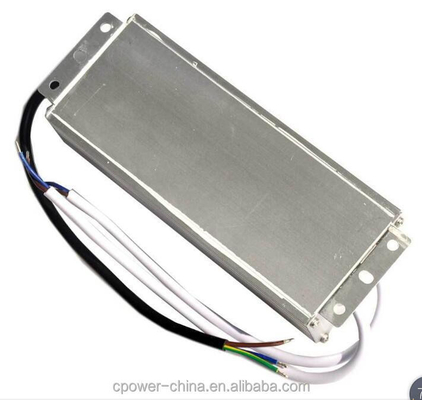

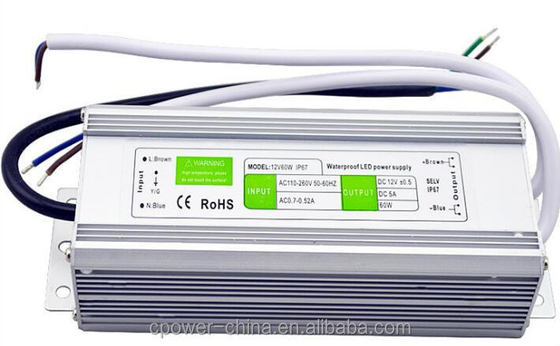

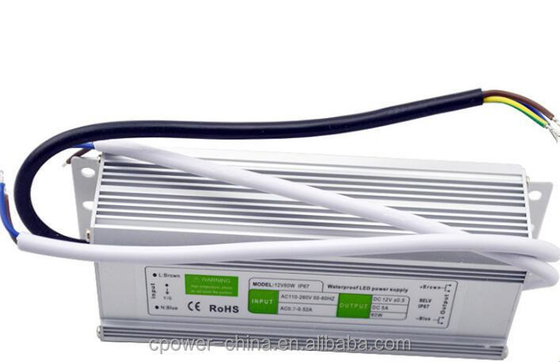

Product Details:
|
| Output Type: | Single | Input Voltage: | 110v/220v, 220V |
|---|---|---|---|
| Output Voltage: | 12V | Output Frequency: | 47-63HZ |
| Output Current: | 5A | Application: | LED Lighting |
| Warranty: | 3 Years | Product Name: | Waterproof Swtiching Power Supply |
| Type: | Constant Voltage | Protection: | Short Circuit |
| Efficiency: | 86% | Name: | IP67 Led Power |
| Power: | 60w |
Output Voltage: DC 12V,DC 24V
Material: Aluminum
IP Grade: IP67 Waterproof
Working Temperature:-45 to 49degree
| Output | DC Voltage | 12V | 24V |
| Rated Current | 2.5A | 1.25A | |
| Current Range | 0~2.5A | 0~1.25A | |
| Rated Power | 30W | 30W | |
| Ripple&Noise | 120Vp-p | 150Vp-p | |
| Set up,Rise time | 500ms, 20ms / 230VAC | ||
| Input | Voltage Range | 170~265VAC 47~62Hz | |
| Efficiency | 84% | 85% | |
| Ac Current | 0.5A/230VAC | ||
| Leakage Current | 0.25mA / 240VAC | ||
| Inrush Current | Cold Start <40A at 230VAC | ||
| Protection | Over Current | 110~140% rated output power | |
| Protection Type | Hiccup mode, recovers automatically after fault condition is removed | ||
| Over Voltage | Hiccup mode, recovers automatically after fault condition is removed | ||
| Environment | Working Temp&Humidity | -30-60°C 20-90% RH | |
| Storage Temp&Humidity | -40-80°C 10-90%RH | ||
| Safety&EMC | Safety Standards | IP67 Approved ,Design Refer to: EN60950 | |
| Withstand Voltage | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||
| Isolation Resistance | I/P-O/P:>100M Ohms / 500VDC | ||
| EMC Emission | Compliance to EN55022 (CISPR22) Class B,EN61000-3-2 Class A, EN61000-3-3 | ||
| EMC Immunity | Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, Criteria A | ||
1,Promotely reponse and fast production leadtime 2,Best pre-sale & after-sale service
3,Reliable products quality and good reputation 4,High manufacturing capacity
