Product Details:
|
| Output Type: | Single | Input Voltage: | 110v 220v |
|---|---|---|---|
| Output Voltage: | 12V | Output Frequency: | 50/60Hz |
| Output Current: | 1a | Application: | Cctv ,dvr ,spy Camera, Baby Monitor |
| Warranty: | 3 Years | Protection: | Short Circuit |
| Efficiency: | 90% | Name: | UK Plug CCTV Power Supply |
| Service: | OEM ODM | Price: | Factory Selling |
| Payment: | L/C,TT,Paypal,ect | Style: | Power Adapter |

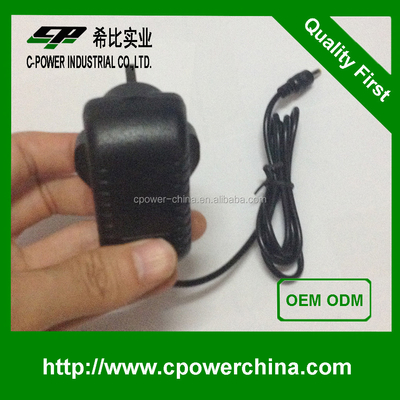

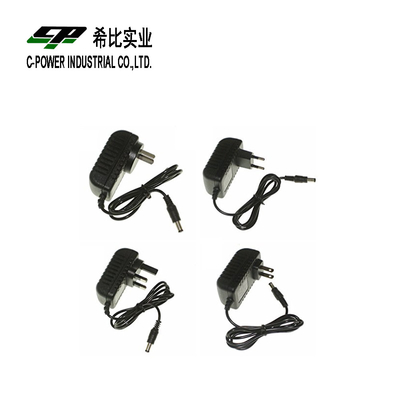

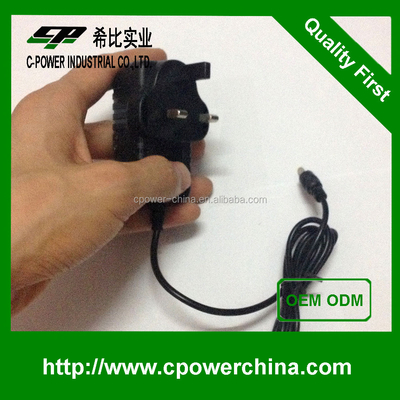

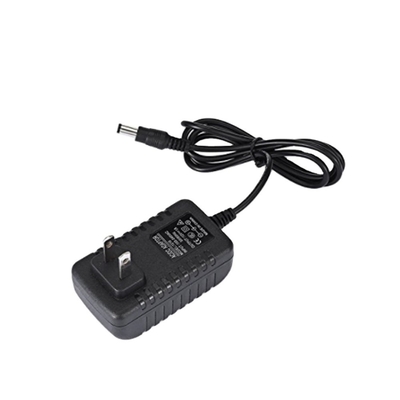

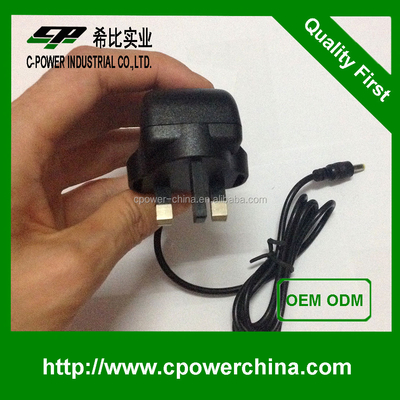

Alibaba manufacturer wholesale dc regulated power supply 12v 1a
1. AC input range selectable by switch
2. Protections: Short circuit / Overload / Over voltage / Over temperature
3. 100% full load burn-in test
4. Low cost, high reliability
5. 2 years warranty
| OUTPUT | DC VOLTAGE | 12V dc |
| RATED CURRENT | 1A | |
| CURRENT RANGE | 0~10A | |
| RATED POWER | 12W | |
| RIPPLE & NOISE(max). | 150mVp-p | |
| VOLTAGE ADJ.RANGE | 0-5V | |
| VOLTAGE TOLERANCE | ±1.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGULATION | ±0.5% | |
| SETUP,RISE TIME | 1000ms, 50ms/230VAC 1000ms,50ms/115VAC at full load | |
| HOLD UP TIME(Typ.) | 20ms/230VAC 16ms/115VAC at full load | |
| INPUT | VOLTAGE RANGE | 90 ~ 132VAC / 180 ~ 264VAC by switch 254 ~ 370VDC |
| FREQUENCY RANGE | 47~63HZ | |
| EFFICIENCY(Typ.) | 87% | |
| AC CURRENT(Typ.) | 4.5A/115VAC 2.5A/230VAC | |
| INRUSH CURRENT(Typ.) | 40A/115VAC 55A/230VAC | |
| LEAKAGE CURENT | <3.5mA / 240VAC |
1,How many voltage can you supply?
-- 5V, 6.5V,9V 10V,12V, 13.5V, 15V, 18V, 19V, 24V 36V, 48V (depend on items)
2,How many current can you supply?
-- 0.5A, 1A,1.25A, 1.5A, 2A, 2.5A,3A, 3.42A,4A, 5A, 6A, 10A, 15A 20A, 30A, 40A, 50A, 60A
3,How about the quality?
-- We have the best professional and experienced engineer and strict QA and QC system. Repair rate under 1.1%-0.2%
4,What’s your MOQ?
-- 3000pcs, except for sample order or trial order.
How's your power supply and adapter quality?
-- 100% burn-in test, full-round tests. All products are CE approved, We promise less than 1% defetive within one year (history defetive rate is around 0.2% defetive in a year).If within 1% defetive, just show us inner unique serial number of defetive products and we can replace for free in the next order; if defective rate is higher than 5% because of product quality problem, will promise you to replace for free .
