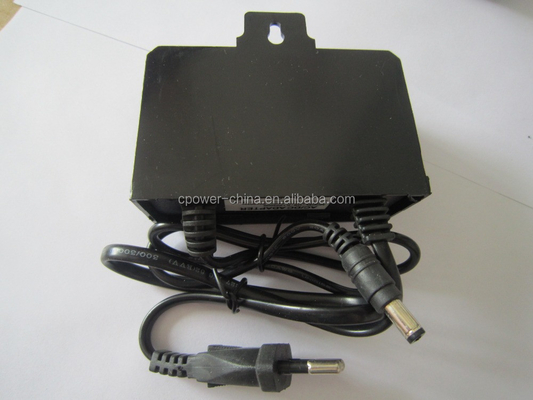

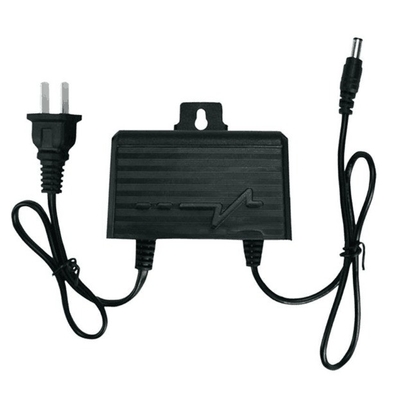

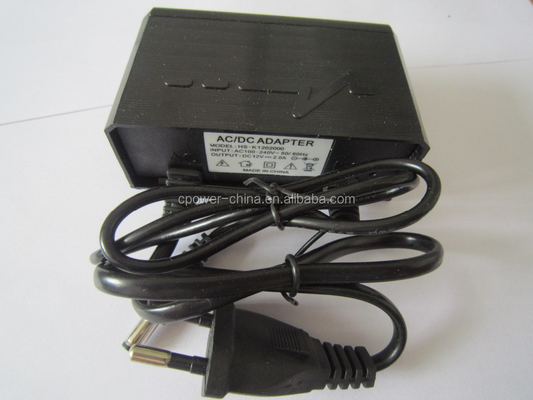

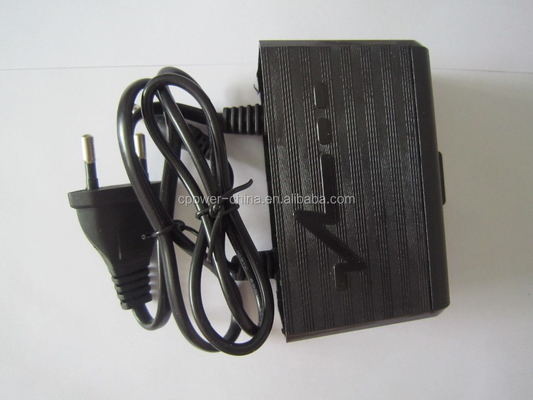

Pre-Rain 24w 12v 1a 15v 1a 12v 2a Rainproof Power Adapter with Output Current of 2000mA

Oupt power range

12V 2A

Input Rated Voltage

100Vac~240Vac

Input Frequency Range

47Hz~63Hz

Input Current

less than 0.5A

Input Inrush Current

less than 50A

Efficiency

80%(MIN)at Rated Voltage

DC Output Voltage

12V± 5%

DC Output Current

2A

DC Output Power

24W

Leakage Current

less than 1mA

Standby power

less than 0.5w

DC connector

5.5*2.1*10mm/5.5*2.5 *10mm(optional)

DC cable

1.2m cable (optional)

Ripple and Noise

less than 120Mv at full road with 20MHz bandwidth

Turn On Delay Time

less than 3S  (AC:110V and full load)

Dielectric Voltage

A IEC320 three pin input---output(FG)3000Vac one minute

Safety protection

output voltage protection (150%-180% rated output current)

output current protection (150%-180% rated output current)

short current protection

Operating Temperature

 0°C - +55°C

Storage Temperature

 -20°C - +85°C
