Product Details:
|
| Output Type: | DC | Connection: | Plug In |
|---|---|---|---|
| Certificate: | CE | Output: | 12V 2.4A |
| Product Name: | Power Adaptor | Output Voltage: | 12VDC |
| Color: | Black | Warranty: | 3 Years |
| Type: | AU Wall Mount | Output Current: | 1-3A |
| Input: | AC 100-240v 50-60hz | Power: | 30W |
Features:
- Double chipset innovation provides constant true voltage automatically with low consumption.
- Built with input/output overvoltage protection, input/output overcurrent protection, over temperature
protection, over power protection and short circuit protection.

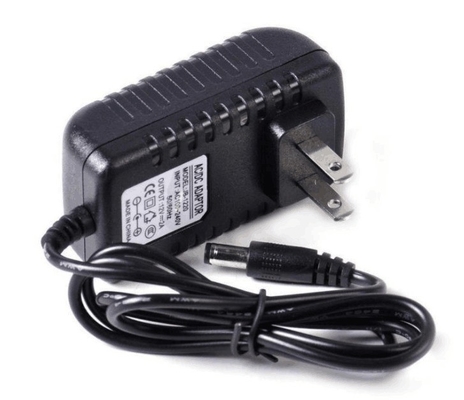

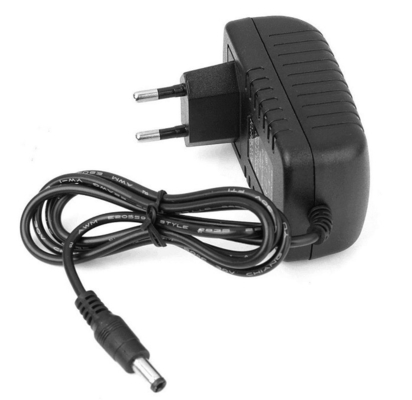

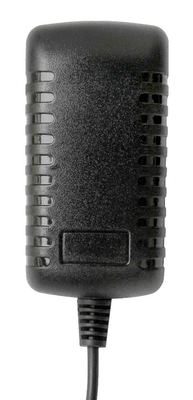

Specification: 12V 2.4A Power Adapter
| Model | 12V 2.4A Power Adapter |
| DC output voltage | 12V |
| Rated output current (Customized) | 2.4A |
| Output current rage | 0-2A |
| Wave and noise | 12mVp-p |
| Inlet stability | ±0.5% |
| Load stablity | ±1% |
| Efficiency | 87% |
| Adjustable range for DC voltage | ±10% |
| AC input voltage range | AC100~240V 47~63Hz;240~370VDC |
| AC INnrush current | Cold-start current 18A/115V 36A/230V |
| Over-voltage protection | Hiccup mode, auto-recovery after fault condition is removed |
| working temperature | - 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost) |
| Storage temperature | - 40 ° ~ 85 ° c / 10% ~ 95% RH (no frost) |
| height above sea level | <2000M |
| Cooling method | Natural cooling air convection |
| Safety standards | According with GB4943, UL60950-1,EN60950-1 standards. |
| E M C standards | According with GB9254, EN55022 class A EN61347-2-13:2008 standards |
