Product Details:
|
| Output Type: | DC | Connection: | Plug In |
|---|---|---|---|
| Certificate: | CE FCC ROHS | Warranty: | 3 Years |
| Input: | 100-240V 50/60HZ | Output: | 12V DC 1000mA |
| Color: | Black | Type: | EU Wall Mount Constant Volt |
| DC Plug: | Eu ,Us, Uk,Au,Cn,Availabe | DC Jack: | 5.5*2.1mm ,ect |
| Service: | OED ODM | Quality: | 100%testing In The Aging Room |

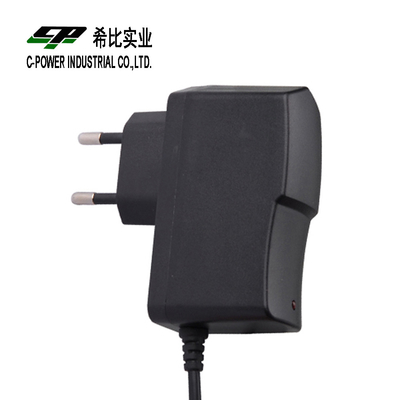

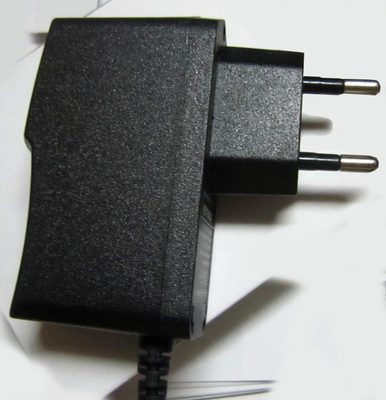

The best price of AC 100-240V Input 12W 5.5*2.1 DC Jack 12V DC Output 1A AC DC Power Adapter 50/60hz for Security Camera
a) Input: AC100-240V
b) Frequency: 50/60Hz
c) Line regulation range: ±0.5max.
2) Output: 12V DC 1000mA
a) Line regulation range: ±0.5% max.
b) Ripple and noise (mVp-p): <1% of output voltage
c) Adjustable range of output voltage: +5%, -3%
d) Start-up time: ≤1s (AC input 240V and Io=100%)
e) Hold-up time: ≥20ms (AC input 240V and Io=100%)
3) Insulation resistance
Input---output: ≥50mΩ, DC500V
4) Environmental requirements:
a) Operating temperature: 0---40°C
b) Operating humidity: 10-90% RH (no freezing dew)
c) Storage temperature: -20----85°C
d) Storage humidity: 10-95% RH (no freezing dew)
| Product Name: | 12V 1000MA AC/DC Adapter |
| Input: | 100~240V, 50~60Hz, 1A (Works Worldwide) |
| Output: | 12V 1000mA 12W |
| Line regulation range: | ±0.5max. |
| Range of outptt voltage: | +5%, -3% |
| Storage temperature: | -20 -- 85°C |
| Net Weight: | 75G |
| DC Connector: | 5.5*2.1 or 4.0*1.7 or ect |
| Color: | Black |
| Material for PCB & Housing: | ABS+PC+Fireproofing marterial |
| DC Plug | EU ,US ,UK ,AU, CN ,Ect |
| Delivery Date: | Within 2-3 workdays after confirm the payment |
| Warranty: | 3 years |
| Approved: | CE,FCC,RoHS |
| Protection: | SCP,OVP,OCP,OTP |
| Test: | Temperature test; Vibration test; Drop-Test;Over charging and discharging test |
| Line Regulation: | +/-5% |
| Load Regulation | +/-5% |
| Normal Operating Temperature and Humidity: | Operating Temperature: 0°C to 45°C |
| Humidity: 10% to 90%RH | |
| Storage Temperature and Humidity: | Storage Temperature: -20°C to 85°C |
| Humidity: 10% to 90%RH |

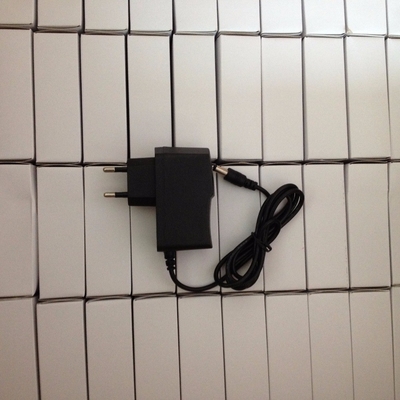

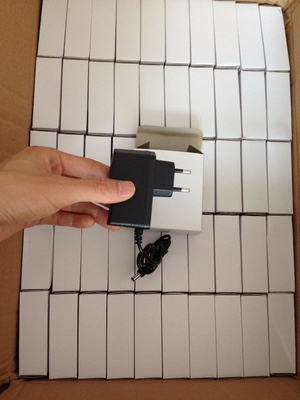

1. Individual box in white box .
2. Strong and solid carton for overseas shipping;
3. Packages can be OEM or ODM.
4. Delivery time: 1-2 days for stock, about 1 week if no stock.
5. Can ship by air or by sea or send to buyers' shipper/partners
We offer the palletized delivery to our honourable customer by sea.
The palletized delivery detail as following:
= Promotely reponse and fast production leadtime = Best pre-sale & after-sale service
= Reliable products quality and good reputation = High manufacturing capacity
1,How many voltage can you supply?
-- 5V, 6.5V,9V 10V,12V, 13.5V, 15V, 18V, 19V, 24V 36V, 48V (depend on items)
2,How many current can you supply?
-- 0.5A, 1A,1.25A, 1.5A, 2A, 2.5A,3A, 3.42A,4A, 5A, 6A, 10A, 15A 20A, 30A, 40A, 50A, 60A
3,How about the quality?
-- We have the best professional and experienced engineer and strict QA and QC system. Repair rate under 1.1%-0.2%
