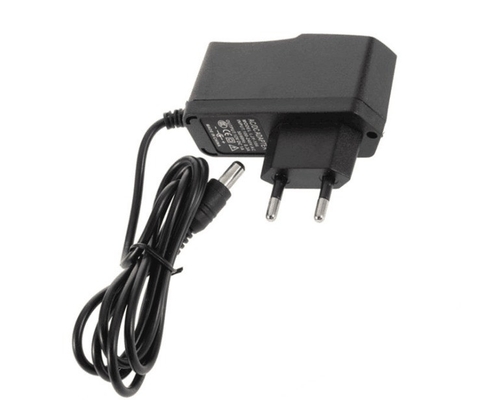

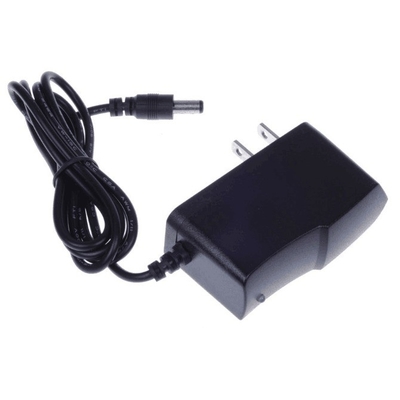

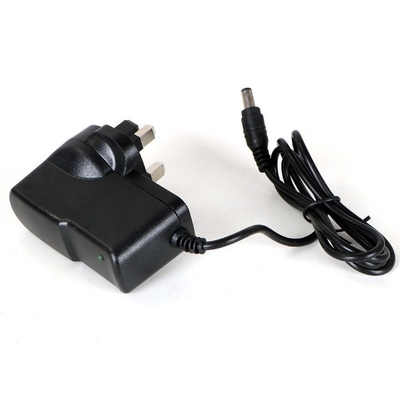

Catholic 220V AC Power Supply 12V1A Plug-in Type 12W DC Adapter Output Current 1000mA

Model

12V 1A Power Adapter

DC output voltage

12V

Rated output current (Customized)

1A

Output current rage

0-2A

Wave and noise

12mVp-p

Inlet stability

±0.5%

Load stablity

±1%

Efficiency

87%

Adjustable range for DC voltage

±10%

AC input voltage range

AC100~240V 47~63Hz;240~370VDC

AC INnrush current

Cold-start current 18A/115V 36A/230V

Over-voltage protection

Hiccup mode, auto-recovery after fault condition is removed

working temperature

- 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost)

Storage temperature

- 40 ° ~ 85 ° c / 10% ~ 95% RH (no frost)

height above sea level

<2000M

Cooling method

Natural cooling air convection

Safety standards

According with GB4943, UL60950-1,EN60950-1 standards.

E M C standards

According with GB9254, EN55022 class A EN61347-2-13:2008 standards
