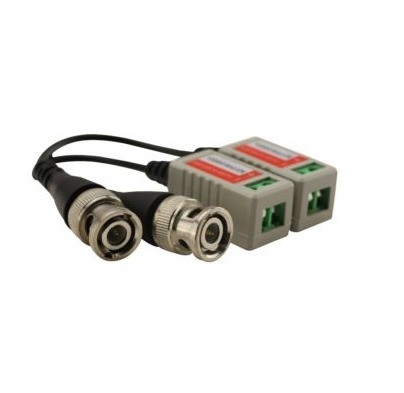

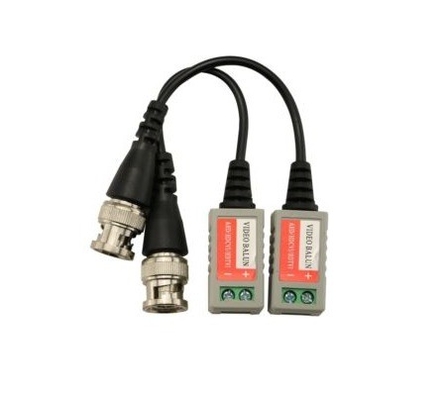

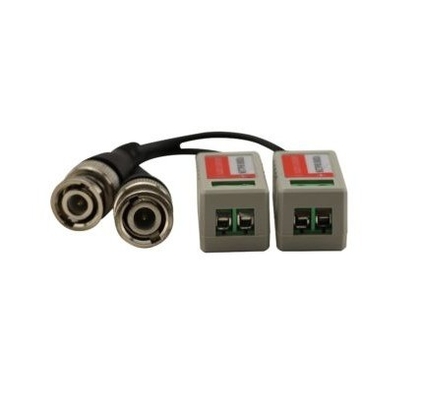

PVC Coated Connector Pigtails via CAT5e Cat6 UTP Cable Video Balun System

Large Image : PVC Coated Connector Pigtails via CAT5e Cat6 UTP Cable Video Balun System

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	C-Power
Model Number:	CP-B012

Payment & Shipping Terms:

Minimum Order Quantity:	20 pieces
Price:	$1.60/pieces 20-2999 pieces

Contact Now

PVC Coated Connector Pigtails via CAT5e Cat6 UTP Cable Video Balun System

Description

Type:	BNC, BNC	Application:	Audio & Video
Gender:	Female	Product Name:	Bnc Video Balun
Material:	PVC	Color:	Black
Connector Type:	Female Terminals	Connector:	BNC
Brand:	C-Power

Product Description

Used with Analog, HD-CVI, HD-TVI, AHD systems for Cat5e to BNC connectivity:

Swann, Lorex, Q-see, Samsung, Hikvision Turbo HD, Dahua CVI, Speco, Digital Watchdog, Honeywell, GW

Achieves better Results for the newer HD formats: HD-CVI HD-TVI AHD

Features:

Real-time Video transmission via UTP Cat5e/Cat6 cable
10-20% wire cost savings
Surge/Lightning Protection
Interference Suppression/ Noise Filtering
Full-Motion CCTV video at distances up to 2000ft.
Outstanding interference rejection and transient protection.
Male BNC allows connection directly to the camera or DVR
Compact design to minimize exposure
No Power required
Simple installation

Specs:

Transmission signal: 1 channel
Transmission distance: 300m
Coaxial video connector: BNC-M
Twisted-pair video connector: Screw Interface
Compatible Format: PAL,NTSC,SECAM
Signal transmission band: 0-6MHz(-3db)
Anti-interference: >60db
Coaxial video interface protection: 4KV(common-mode)Per:IEC61000-4-5
1a contact discharge electricity level 3
1b air discharge electricity level 3
Per:IEC61000-4-2
MTBF: >10000H
Size(L*W*H): 50mm * 20mm * 15mm
Shell: ABS
Operating Temperature: -10-55°C
Storage Temperature: -20-70°C
Humidity: 0-95% (non-condensing)

PVC Coated Connector Pigtails via CAT5e Cat6 UTP Cable Video Balun System 0

Packaging & Shipping

PVC Coated Connector Pigtails via CAT5e Cat6 UTP Cable Video Balun System 3

Our Services

PVC Coated Connector Pigtails via CAT5e Cat6 UTP Cable Video Balun System 4

1,Promotely reponse and fast production leadtime 2,Best pre-sale & after-sale service

3,Reliable products quality and good reputation 4,High manufacturing capacity

5.OEM/ODM
