Product Details:
|
| Output Type: | Single | Input Voltage: | 110v/220v, 220V |
|---|---|---|---|
| Output Voltage: | 12V | Output Frequency: | 50/60Hz |
| Output Current: | 3a | Application: | Industrial Automation |
| Warranty: | 3 Years | Protection: | Over-voltage |

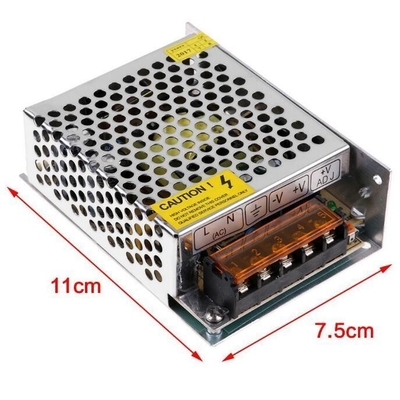

| Efficiency: | 82% | Size: | 110*78*35mm |
| Input Voltage: | 110v/220v | Output Voltage: | 12vdc |
| Brand: | C-Power |
Feature
1.Universal AC input / full range
2.Input Frequency 47-63Hz
3.low products cost, high quality level
4.100% aging test
5.AC input Voltage range: 110/220VAC±20%, Selected by switch
6. Short circuit / Overload Protection
7. Soft-start current , reduce the AC input Inrush
8. Installed with EMI filter, minimun wave
9. Small size, light weight, long life , high efficiency
| Model | CP-36-12 | |
| Output | DC output voltage | 12V |
| Output voltage tolerance | ±1% | |
| Rated output current | 3A | |
| Output current | 0~3A | |
| Output power | 36W | |
| Ripple and noise | 80mVp-p | |
| DC adjustable range | ±10% | |
| Setup rise hold up time | 50ms | |
| Input | Input voltage range | 85~132VAC 170~264VAC 47~63Hz, 240~370VDC |
| AC input current | 6.5A/115V 4A/230V | |
| Efficiency | 82% | |
| AC inrush current | Cold start current 25A/115V 50A/230V | |
| Leakage current | <3.5mA/240VAC | |
| Protection characteristic | Over load protection | 105%~135%rated output power start the over load protection |
| Protection mode : cut off the output,auto-recovery | ||
| Over-voltage protection | 115%-135% cut off the output,auto-recovery | |
| Over-temp protection | Rectifier≥80°Ccut off the output ,auto-recovery | |
| Fan ON/OFF control | ≥55°C Fan start ,≤45°CFan off | |
| Environment | Working temperature | -10°C~+60°C;20%~90%RH(please refer to the Load deduction curve) |
| Security | Withstand voltage | Between input and output:1.5KVACThe input and ground : 1.5KVACThe output and ground :0.5KVAC |
| Insulation resistance | Between input and output:The input and ground, the output and ground: 100M 0hms /500VDC | |
1,Promotely reponse and fast production leadtime 2,Best pre-sale & after-sale service
3,Reliable products quality and good reputation 4,High manufacturing capacity
5.OEM/ODM
