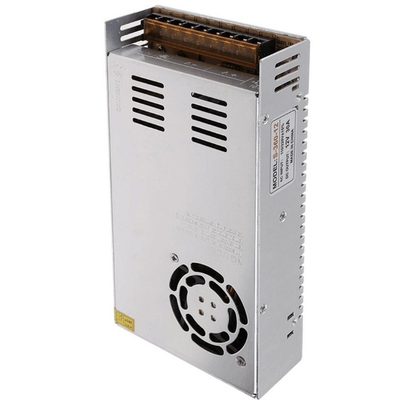

Large Image :  Over-voltage Protection C-Power 230v AC-230v Power Supply DC 12v 30a 24v 15a 360w AC

Product Details:
Place of Origin: Guangdong, China
Brand Name: C-Power
Certification: CE
Model Number: CP-360-12D
Payment & Shipping Terms:
Minimum Order Quantity: 5 pieces
Price: $6.90/pieces 5-499 pieces

Over-voltage Protection C-Power 230v AC-230v Power Supply DC 12v 30a 24v 15a 360w AC

Description
Output Type: Single Input Voltage: 230v
Output Voltage: 12V Output Frequency: 50/60Hz
Output Current: 30A Application: LED Lighting Electronics
Warranty: 3 Years Efficiency: 82%
Size: 215*113*50mm Color: Silver
Protection: Over-voltage Type: Constant Voltage
Input Voltage: 220v Output Voltage: 12v Dc

Product Description



Feature

1.Universal AC input / full range
2.Input Frequency 47-63Hz
3.low products cost, high quality level
4.100% aging test
5.AC input Voltage range: 110/220VAC±20%, Selected by switch
6. Short circuit / Overload Protection
7. Soft-start current , reduce the AC input Inrush
8. Installed with EMI filter, minimun wave
9. Small size, light weight, long life , high efficiency

   Model

CP-360-12

Output

DC output voltage

12V

Output voltage tolerance

±1%

Rated output current

30A

Output current

0~30A

Output power

360W

Ripple and noise

80mVp-p

DC adjustable range

±10%

Setup rise hold up time

50ms

Input

Input voltage range

85~132VAC 170~264VAC 47~63Hz, 240~370VDC

AC input current

6.5A/115V 4A/230V

Efficiency

82%

AC inrush current

Cold start current 25A/115V 50A/230V

Leakage current

<3.5mA/240VAC

Protection characteristic

Over load protection

105%~135%rated output power start the over load protection

Protection mode : cut off the output,auto-recovery

Over-voltage protection

115%-135% cut off the output,auto-recovery

Over-temp protection

Rectifier≥80°Ccut off the output ,auto-recovery

Fan ON/OFF control

≥55°C Fan start ,≤45°CFan off

Environment

Working temperature

-10°C~+60°C;20%~90%RH(please refer to the Load deduction curve)

Security

Withstand voltage

Between input and output:1.5KVACThe input and ground : 1.5KVACThe output and ground :0.5KVAC

Insulation resistance

Between input and output:The input and ground, the output and ground: 100M 0hms /500VDC



Over-voltage Protection C-Power 230v AC-230v Power Supply DC 12v 30a 24v 15a 360w AC 0Over-voltage Protection C-Power 230v AC-230v Power Supply DC 12v 30a 24v 15a 360w AC 1Over-voltage Protection C-Power 230v AC-230v Power Supply DC 12v 30a 24v 15a 360w AC 2

Packaging & Shipping

 Over-voltage Protection C-Power 230v AC-230v Power Supply DC 12v 30a 24v 15a 360w AC 3

Our Services

 Over-voltage Protection C-Power 230v AC-230v Power Supply DC 12v 30a 24v 15a 360w AC 4

1,Promotely reponse and fast production leadtime     2,Best pre-sale & after-sale service

3,Reliable products quality and good reputation         4,High manufacturing capacity

5.OEM/ODM
