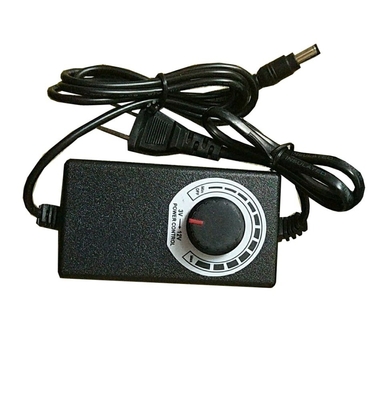

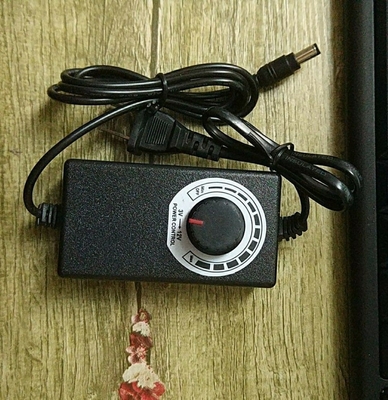

Product Details:
|
| Output Type: | DC | Connection: | Plug In |
|---|---|---|---|
| Certificate: | CE FCC ROHS | Product Name: | Power Adaptor |
| Output: | 12v 15v 5v 19v 24v | Output Voltage: | 3-12V DC |
| Color: | Black | Usage: | Electronic Products |
| Warranty: | 3 Years | Type: | AU Wall Mount |
| Output Current: | 2000mA | Input: | AC 100-240v 50-60hz |
| Port: | Shenzhen |
| Input | Voltage Range | 100~240Vac |
| Frequency Range | 50/60Hz | |
| Efficiency | 85%min | |
| Output | DC Voltage | 3-12V |
| Rated Current | 1.5A/2A | |
| Rated Power | 4.5-24W | |
| Ripple&Noise | <120Mvp | |
| Voltage Tolerance | ±5% | |
| Line Regulation | ±1% | |
| Load Regulation | ±5% | |
| Protection | Over Load | Yes |
| Over Voltage | Yes | |
| OverTemperature | Yes | |
| Short Circuit | Yes | |
| Environment | Working Temp. | -10~+65℃ |
| Working Humidity | 20~90% RH non-condensing | |
| Storange Temp., Humidity | -20~+85℃, 10~95%RH | |
| OTHERS | Certificates | CE-EMC CE-LVD ROHS FCC etc. |
| MTBF | 40 K hrs min. MIL-HDBK-217F (25℃) | |

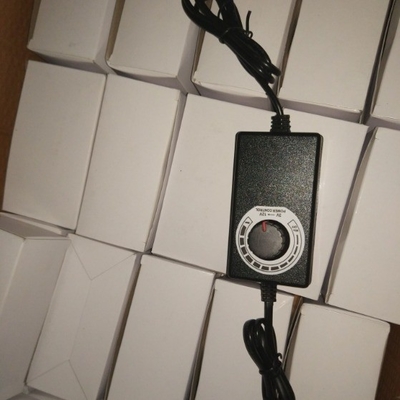

| PACKING | White box |
1,Promotely reponse and fast production leadtime 2,Best pre-sale & after-sale service
3,Reliable products quality and good reputation 4,High manufacturing capacity
5.OEM/ODM
Any other question,please tell me by below way
Whats app:86-15012822472
skype:tingcctv1
Wechat:cpowerchina
Contact Person: Mr. Zhang
Tel: +8617337136440
