Product Details:
|
| Output Power: | 201 - 300w | Output Type: | Single |
|---|---|---|---|
| Input Voltage: | 220V | Output Voltage: | 30A |
| Output Frequency: | 47~63Hz | Output Current: | 30A |
| Application: | CCTV Cameras Or Led Lights | Warranty: | 2 Years |
| Protections: | Shortcuit Overtemp Overload Overtemp | Efficiency: | 88% |
| Service: | OEM ODM | Price: | Factory Selling |
| Payment: | TT, L/C , Paypal ,ect | Package: | Individual Box In White Box . |
| Delivery Time: | 1-2 Days For Stock, About 1 Week If No Stock. |

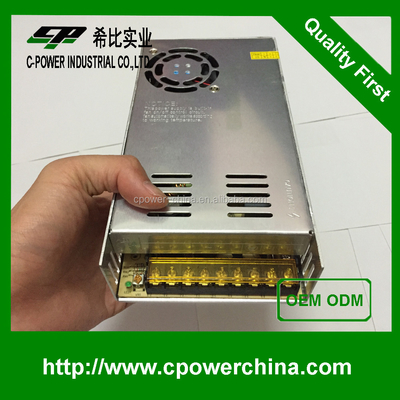

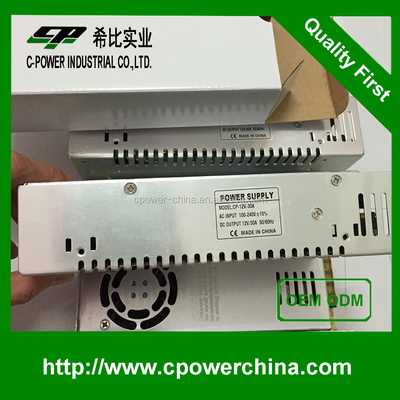

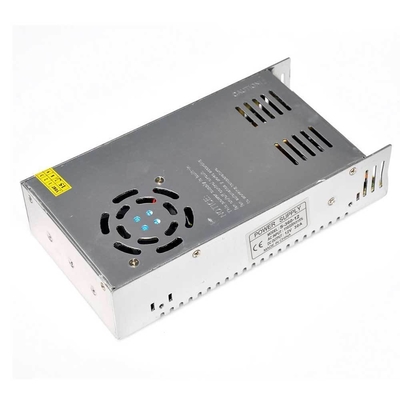

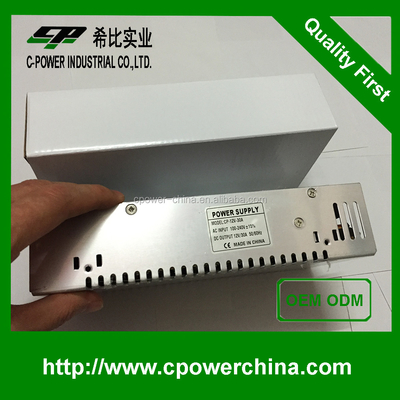

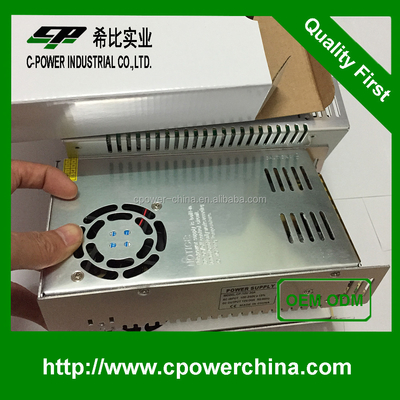

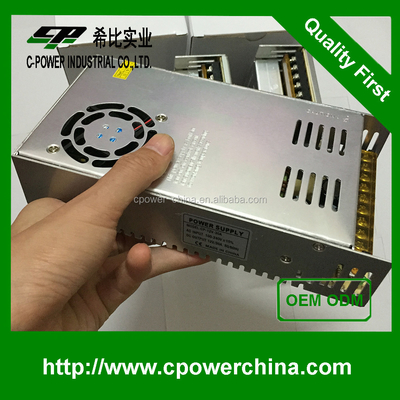

shenzhen mobile power supply 12volt 30amp power supply variable frequency ac power supply
1. 50PCS/CTN
2. Protections: Short circuit / Overload / Over voltage / Over temperature
3. 100% full load burn-in test
4. Low cost, high reliability
5. 2 years warranty
| OUTPUT | DC VOLTAGE | 12V DC |
| RATED CURRENT | 30A | |
| CURRENT RANGE | 0~30A | |
| RATED POWER | 360W | |
| RIPPLE & NOISE(max). | 150mVp-p | |
| VOLTAGE ADJ.RANGE | 0-5V | |
| VOLTAGE TOLERANCE | ±1.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGULATION | ±0.5% | |
| SETUP,RISE TIME | 1000ms, 50ms/230VAC 1000ms,50ms/115VAC at full load | |
| HOLD UP TIME(Typ.) | 20ms/230VAC 16ms/115VAC at full load | |
| INPUT | VOLTAGE RANGE | 90 ~ 132VAC / 180 ~ 264VAC by switch 254 ~ 370VDC |
| FREQUENCY RANGE | 47~63HZ | |
| EFFICIENCY(Typ.) | 87% | |
| AC CURRENT(Typ.) | 4.5A/115VAC 2.5A/230VAC | |
| INRUSH CURRENT(Typ.) | 40A/115VAC 55A/230VAC | |
| LEAKAGE CURENT | <3.5mA / 240VAC |
1,How many voltage can you supply?
-- 5V, 6.5V,9V 10V,12V, 13.5V, 15V, 18V, 19V, 24V 36V, 48V (depend on items)
2,How many current can you supply?
-- 0.5A, 1A,1.25A, 1.5A, 2A, 2.5A,3A, 3.42A,4A, 5A, 6A, 10A, 15A 20A, 30A, 40A, 50A, 60A
3,How about the quality?
-- We have the best professional and experienced engineer and strict QA and QC system. Repair rate under 1.1%-0.2%
How's your power supply and adapter quality?
-- 100% burn-in test, full-round tests. All products are CE approved, We promise less than 1% defetive within one year (history defetive rate is around 0.2% defetive in a year).If within 1% defetive, just show us inner unique serial number of defetive products and we can replace for free in the next order; if defective rate is higher than 5% because of product quality problem, will promise you to replace for free .
Contact Person: Mr. Zhang
Tel: +8617337136440
