Product Details:
|
| Output Power: | 101 - 200W | Output Type: | Single |
|---|---|---|---|
| Input Voltage: | 220V | Output Voltage: | 12V |
| Output Frequency: | 50/60Hz | Output Current: | 15A |
| Application: | Electronics | Warranty: | 3 Years |
| Product Name: | Power Supply 12v 15a | Protection: | Over-voltage |
| Efficiency: | 82% | Color: | Silver |
| Name: | AC DC Power Supply | Brand: | C-Power |
| Current: | 15A | Port: | Shenzhen |
Feature
1.Universal AC input / full range
2.Input Frequency 47-63Hz
3.low products cost, high quality level
4.100% aging test
5.AC input Voltage range: 110/220VAC±20%, Selected by switch
6. Short circuit / Overload Protection
7. Soft-start current , reduce the AC input Inrush
8. Installed with EMI filter, minimun wave
9. Small size, light weight, long life , high efficiency

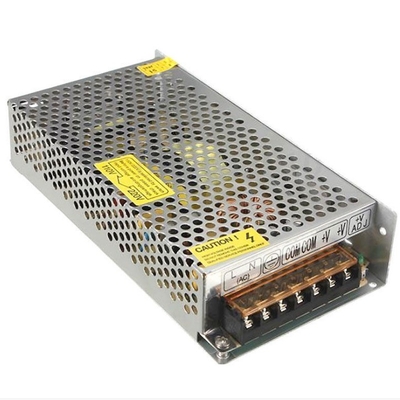

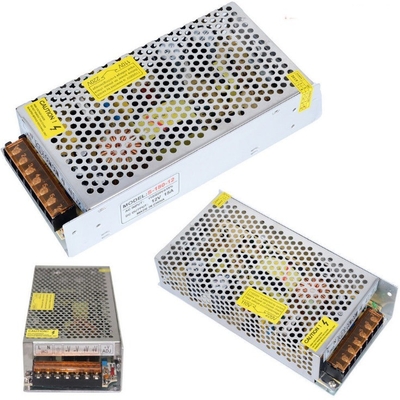

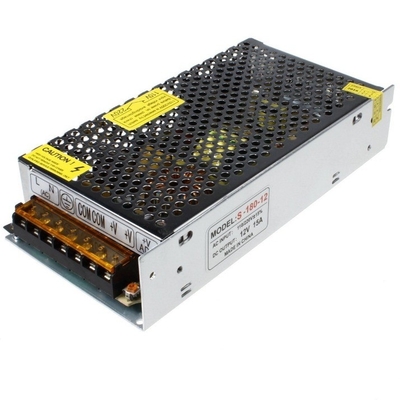

Model | CP-180-12 | |
Output | DC output voltage | 12V |
Output voltage tolerance | ±1% | |
Rated output current | 15A | |
Output current | 0~15A | |
Output power | 18
0W | |
Ripple and noise | 80mVp-p | |
DC adjustable range | ±10% | |
Setup rise hold up time | 50ms | |
Input | Input voltage range | 85~132VAC 170~264VAC 47~63Hz, 240~370VDC |
AC input current | 6.5A/115V 4A/230V | |
Efficiency | 82% | |
AC inrush current | Cold start current 25A/115V 50A/230V | |
Leakage current | <3.5mA/240VAC | |
Protection characteristic | Over load protection | 105%~135%rated output power start the over load protection |
Protection mode : cut off the output,auto-recovery | ||
Over-voltage protection | 115%-135% cut off the output,auto-recovery | |
Over-temp protection | Rectifier≥80°Ccut off the output ,auto-recovery | |
Fan ON/OFF control | ≥55°C Fan start ,≤45°CFan off | |
Environment | Working temperature | -10°C~+60°C;20%~90%RH(please refer to the Load deduction curve) |
Security | Withstand voltage | Between input and output:1.5KVACThe input and ground : 1.5KVACThe output and ground :0.5KVAC |
Insulation resistance | Between input and output:The input and ground, the output and ground: 100M 0hms /500VDC | |
1,Promotely reponse and fast production leadtime 2,Best pre-sale & after-sale service
3,Reliable products quality and good reputation 4,High manufacturing capacity
5.OEM/ODM
