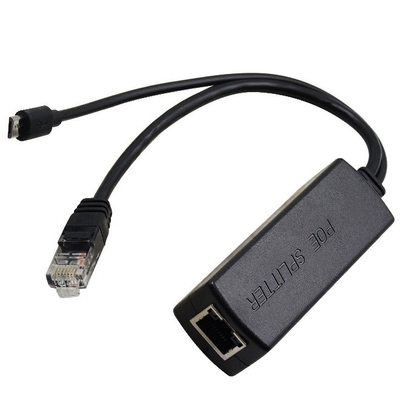

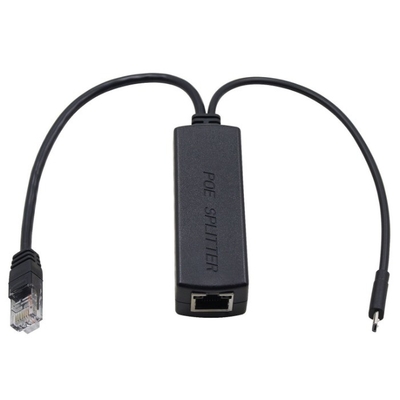

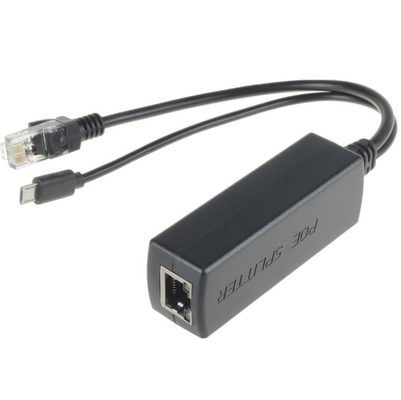

2.4a Current Black Power Over Ethernet Kit for Raspberry Pi 3 Board Injector Splitter

 Feature:

10/100/1000Mbps(Gigabit) Ethernet Active PoE Splitter Micro USB Plug
for Raspberry Pi 3B+(3B Plus) ASUS Tinker Development Board
48V to 5V 2.4A (Max. 12watt)
Compliant with IEEE802.3af
With 2.5KV isolation

Note:

This POE splitter must be connected with POE Switch or 48V POE Injector so that it can supply power to a connected Raspberry Pi or other Micro USB Port IN DC 5V cameras:
Compatible IEEE 802.3af/802.3at standard POE switches(safty power supply):
When using 80.3af/802.3at standard PoE switch (or injector) to connect this PoE splitter,and the Power Output Port (Micro USB) is not loaded (unconnected device),the PoE splitter will enter standby mode. Data Output Port (RJ45 Male) will not work at this moment.
To avoid this problem,please use 48V Passive PoE Injector Switch(Midspan Mode-B Unsolicited Power 4,5+/7,8-), links are below:
Gigabit 48V 120W 8 Ports 7 PoE Injector PoE Switch: http://www.ebay.com/itm/191784190108
this POE Splitter is also suitable for household IP camera and mobile router with Micro USB Plug 5V power Port.
Power Output Port: Micro USB Power Plug

RJ45 female INPUT Port:
Support the IEEE 802.3af the Power over Ethernet PoE Switch
Support 48V Unsolicited Power Over Ethernet PoE Switch
Support 48V Unsolicited Power Over Ethernet PoE Adapter


Specification:

Compliant with IEEE802.3af
Isolation: 2.5kV
Power Input:  DC44~57V
Power Output: DC5V 2.4A
Data&Power INPUT Port: from RJ45 female (Compliant with IEEE802.3af/at PoE)
Data Output Port: RJ45 Male
Power Output Port: Micro USB Power Plug
Data Transfer Rate:  10/100/1000 Mbps
Devices will be detected before poe input
Power Pin:support both 1/2(+/-),3/6(-/+) or 4/5(+),7/8(-)
Body size: 80 x 27x 22 mm
DC cable length:165mm
RJ45 Modular Plug cable length:155mm
Weight : 55g
Operation Temperatue:-20℃ ~ 45℃
Storage Temperature:-30℃ ~ 70℃

Notice:
Some managed intelligent Gigabit PoE switches need to set the LAN port of this connected splitter
to Manual 1000Mb/s mode in the management Settings of switches,
otherwise the power supply may work normally but the network connection will not work,
such as the following switch,
