Product Details:
|
| Output Type: | DC | Connection: | Plug In |
|---|---|---|---|
| Input Voltage: | AC100~240V 50/60Hz | Certificate: | Ce |
| Output: | 12v 15v 5v 19v 24v | Warranty: | 2 Years |
| Color: | Black | Usage: | Electronic Products |
| Input: | 100-240V 50/60HZ | Application: | LED Light. Electrical Appliances |
| Output Current: | 2000mA | DC Jack: | 5.5*2.1*10 / 5.5*2.5*10 Mm Barrel Plug |

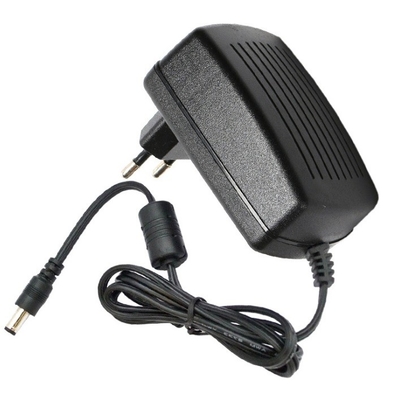

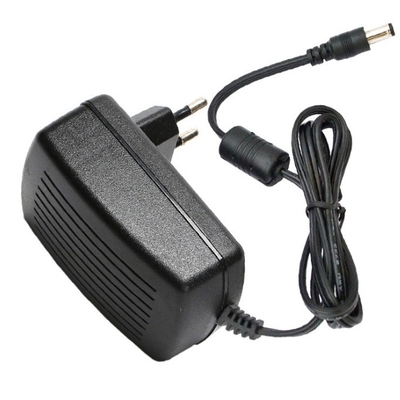

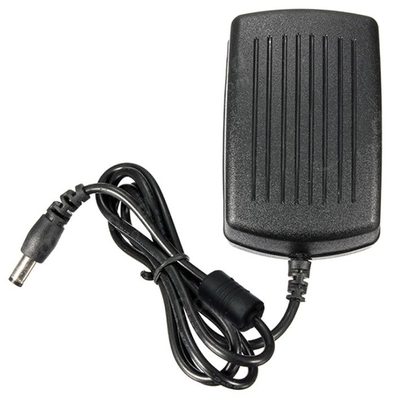

DC12V 1A Switching Power Supply Adapter Security camera Power Adapter CCTV Power Supply 100 240V AC to 12V DC 1Amp 1000mA
1) Input: AC100V-240V
b) Frequency: 50/60Hz 1000mA
c) Line regulation range: ±0.5max.
2) Output: 12V DC 1A 12W
a) Line regulation range: ±0.5% max.
b) Ripple and noise (mVp-p): <1% of output voltage
c) Adjustable range of output voltage: +5%, -3%
d) Start-up time: ≤1s (AC input 240V and Io=100%)
e) Hold-up time: ≥20ms (AC input 240V and Io=100%)
3) Insulation resistance
Input---output: ≥50Mω
4) Environmental requirements:
a) Operating temperature: 0---40°C
b) Operating humidity: 10-90% RH (no freezing dew)
c) Storage temperature: -20----85°C
d) Storage humidity: 10-95% RH (no freezing dew)
5) Elevation: <3000m
