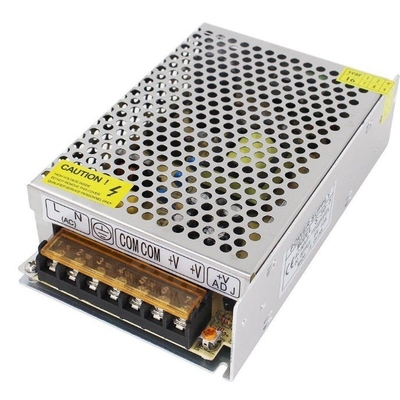

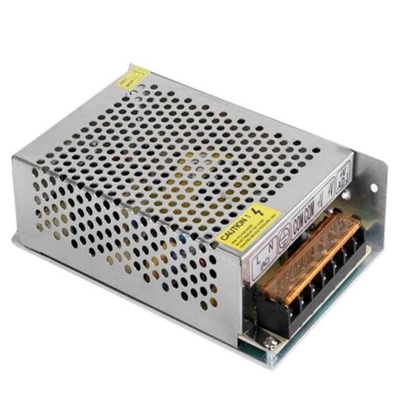

12V 5A 10A 3A AC DC Power Supply with Overload Protection and 50/60Hz Output Frequency

Model

CP-60-12D

DC output voltage

12V

Output voltage tolerance

±2%

Rated output current

5A

Output current range

0-5A

Ripple and noise

50mVp-p

Inlet stability

±0.5%

Load stability

±1%

DC output power

120W

Efficiency

82%

Output voltage adjustment range

±10%

AC input voltage range

85~132VAC/170~265VAC/47~63VAC,120~370VDC

Input current

0.6A/115V 0.35A/230V

AC impulse current

Cold-start current 15A/115V 30A/230V

Leakage current

<0.75mA/240VAC

Overload protection

105%~150% Type,PULSING HICCUP SHUTDOWN,Reset,auto recovery

Over-voltage protection

115%~135% rated output power

Temperature coefficient

±0.03%°C(0~50°C)

Setup rise hold up time

800ms,50ms,20ms/115VAC 300ms,50ms,80ms/230VAC

Vibration

10~500Hz,2G 10min./1cycle,Period for 60min,Each axes

Withstand voltage

I/P-O/P:2.5KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P I/P-FG O/P-FG:500VDC/100MΩ

Working temperature and humidity

-10°C~+60°C,20~90%RH

Store temperature and humidity

-20°C~+85°C,10~95%RH

Safety standards

Desgin refer to UL1012,EN60950-1,EN61347-1,EN-61347-2 approved

EMC standards

EN55015,EN55022,EN55024,EN61000-2,EN61000-3,EN61547 approved
