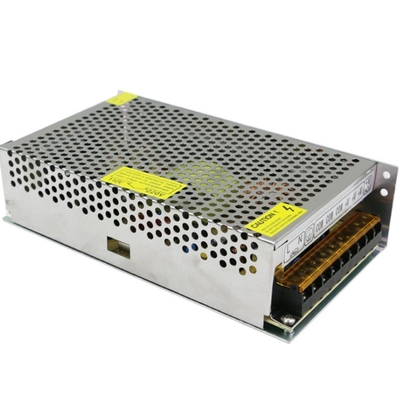

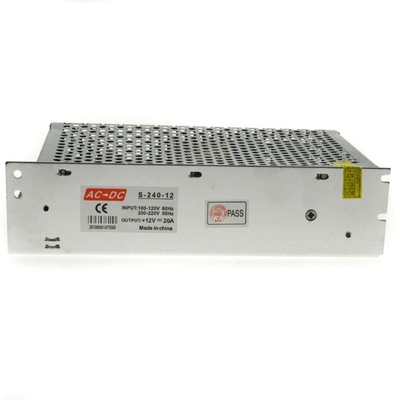

Product Details:
|
| Output Type: | Single | Input Voltage: | Ac110v/220v, 220V |
|---|---|---|---|
| Output Voltage: | 12V | Output Frequency: | 50/60Hz |
| Output Current: | 20A | Application: | LED Lighting |
| Warranty: | 3 Years | Product Name: | Power Supply 12v |
| Type: | Constant Voltage | Protection: | Over-temp |
| Efficiency: | 82% | Color: | Silver |
| Brand: | C-Power |
| Model | CP-S24012D |
| DC output voltage | 12V |
| Output voltage tolerance | ±2% |
| Rated output current | 20A |
| Output current range | 0-20A |
| Ripple and noise | 50mVp-p |
| Inlet stability | ±0.5% |
| Load stability | ±1% |
| DC output power | 240W |
| Efficiency | 82% |
| Output voltage adjustment range | ±10% |
| AC input voltage range | 85~132VAC/170~265VAC/47~63VAC,120~370VDC |
| Input current | 0.6A/115V 0.35A/230V |
| AC impulse current | Cold-start current 15A/115V 30A/230V |
| Leakage current | <0.75mA/240VAC |
| Overload protection | 105%~150% Type,PULSING HICCUP SHUTDOWN,Reset,auto recovery |
| Over-voltage protection | 115%~135% rated output power |
| Temperature coefficient | ±0.03%°C(0~50°C) |
| Setup rise hold up time | 800ms,50ms,20ms/115VAC 300ms,50ms,80ms/230VAC |
| Vibration | 10~500Hz,2G 10min./1cycle,Period for 60min,Each axes |
| Withstand voltage | I/P-O/P:2.5KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC |
| Isolation resistance | I/P-O/P I/P-FG O/P-FG:500VDC/100MΩ |
| Working temperature and humidity | -10°C~+60°C,20~90%RH |
| Store temperature and humidity | -20°C~+85°C,10~95%RH |
| Safety standards | Desgin refer to UL1012,EN60950-1,EN61347-1,EN-61347-2 approved |
| EMC standards | EN55015,EN55022,EN55024,EN61000-2,EN61000-3,EN61547 approved |
1,Promotely reponse and fast production leadtime 2,Best pre-sale & after-sale service
3,Reliable products quality and good reputation 4,High manufacturing capacity
5.OEM/ODM
