Product Details:
|
| Output Power: | 101 - 200W | Output Type: | Single |
|---|---|---|---|
| Input Voltage: | 220V | Output Voltage: | 12V |
| Output Frequency: | 50/60Hz | Output Current: | 10A |
| Application: | LED Lighting | Warranty: | 5 Years |
| Type: | Constant Voltage | Protections: | Short Circuit Overtemp Overload Overvolt |
| Efficiency: | 90% | Test: | 100%Full Load Burn-in Test |
| Service: | Customised OEM ODM | Payment: | TT First , L/C ,Paypal Available |
| Price: | Factory Selling With Best Price |

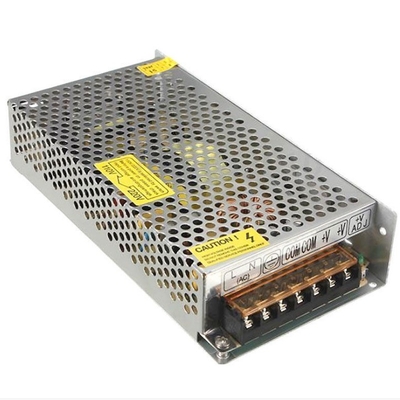

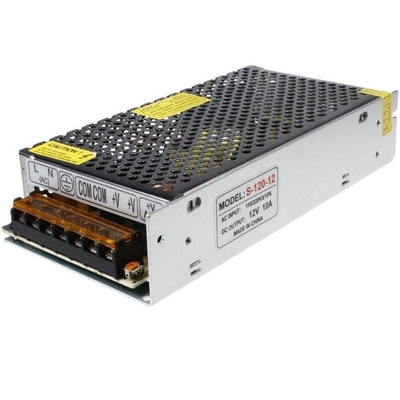

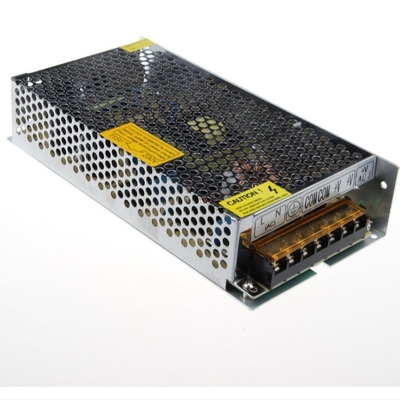

Factory price wholesale 12v dc 10a switching power supply dc 12v 10a 0-300v 10amp s-120-12 220v ac input for led
Features:
♦Universal AC input/Full range(up to 264VAC)
♦Protection: Short circuit/Overload/Over voltage/Over temperature
♦Built in PFC function, PF>0.95
♦Suitable for all kinds of LED lightings, and moving sign applications.
♦Built-in constant current limiting circuit (C.C.+C.V.mode);
♦Compliance to worldwide safety regulations for LED lightings
Product Specifications:
over voltage protection: 120%min
over current protection: 120%min
over protection
Short-circuit protection: automatic recovery
Load regulation: ±5%
Green Circuit Design
High Efficiency
Input voltage | 110V/220V AC |
Input voltage Frequency | 50/60Hz |
Output voltage | 12V DC |
Output current | 10A |
Output power | 120W |
Power Factor | typical 0.95 |
THD | <10% |
Power Efficiency | 90% |
Operation temp | -40-70°C(refer to output derating curve) |
Storage temp | -40-85°C |
Humidity | 10-90%RH. |
1,How many voltage can you supply?
-- 5V, 6.5V,9V 10V,12V, 13.5V, 15V, 18V, 19V, 24V 36V, 48V (depend on items)
2,How many current can you supply?
-- 0.5A, 1A,1.25A, 1.5A, 2A, 2.5A,3A, 3.42A,4A, 5A, 6A, 10A, 15A 20A, 30A, 40A, 50A, 60A
