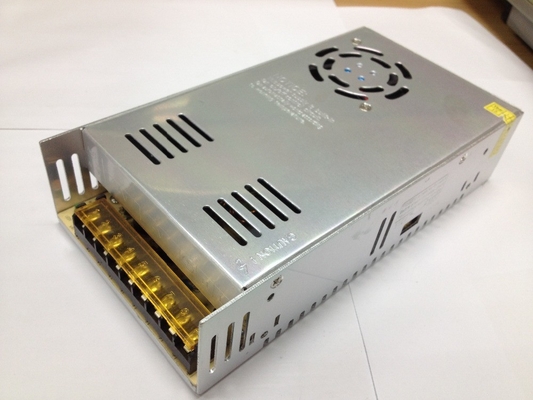

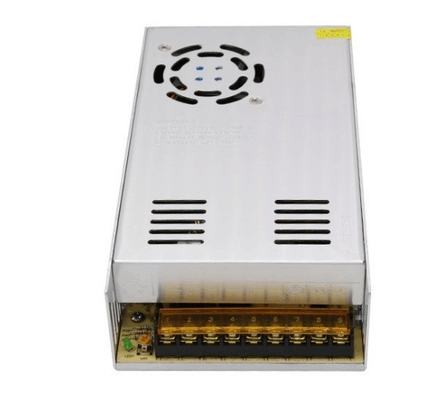

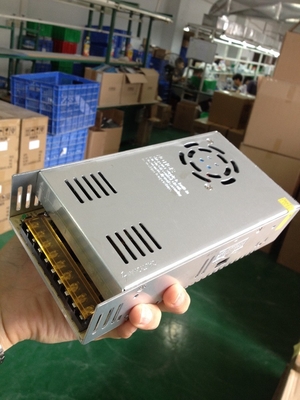

Product Details:
|
| Output Type: | Single | Input Voltage: | 110v ~220v |
|---|---|---|---|
| Output Voltage: | 13.8v | Output Frequency: | 50/60Hz |
| Output Current: | 30A | Application: | LED Lighting Electronics |
| Warranty: | 3 Years | Product Name: | Swtiching Power Supply 13.8v |
| Type: | Constant Voltage | Protection: | Over-voltage |
| Efficiency: | 86% | Color: | Silver |
| Power: | 400w | Brand: | C-Power |
Features:
AC input voltage range choose by switching
Small volume ,light weight ,high efficiency
Shell Material: Metal case / Aluminum base
Stable working voltage,with intelligent temperature control fan.
Protection: Shortage Protection, Overload Protection, Over Voltage Protection
Widely used in Industrial automation, LED display, communications, etc.
2 years quality assurance
Specifications:
| Model | CP-13802d | |
| Output | DC output voltage | 13.8V |
| Output voltage tolerance | ±1% | |
| Rated output current | 30A | |
| Output current | 0~30A | |
| Output power | 360W | |
| Ripple and noise | 80mVp-p | |
| DC adjustable range | ±10% | |
| Setup rise hold up time | 50ms | |
| Input | Input voltage range | 85~132VAC 170~264VAC 47~63Hz, 240~370VDC |
| AC input current | 6.5A/115V 4A/230V | |
| Efficiency | 82% | |
| AC inrush current | Cold start current 25A/115V 50A/230V | |
| Leakage current | <3.5mA/240VAC | |
| Protection characteristic | Over load protection | 105%~135%rated output power start the over load protection |
| Protection mode : cut off the output,auto-recovery | ||
| Over-voltage protection | 115%-135% cut off the output,auto-recovery | |
| Over-temp protection | Rectifier≥80°Ccut off the output ,auto-recovery | |
| Fan ON/OFF control | ≥55°C Fan start ,≤45°CFan off | |
| Environment | Working temperature | -10°C~+60°C;20%~90%RH(please refer to the Load deduction curve) |
| Security | Withstand voltage | Between input and output:1.5KVACThe input and ground : 1.5KVACThe output and ground :0.5KVAC |
| Insulation resistance | Between input and output:The input and ground, the output and ground: 100M 0hms /500VDC | |
