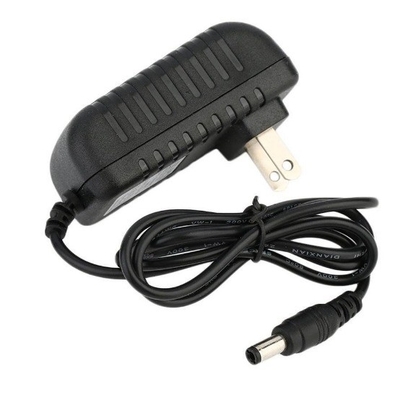

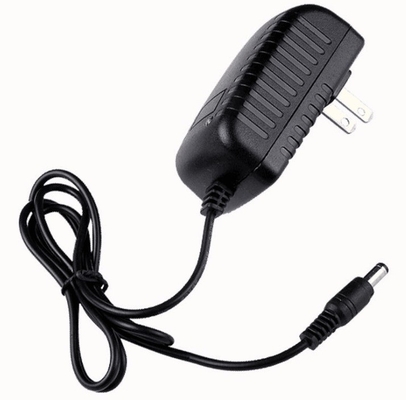

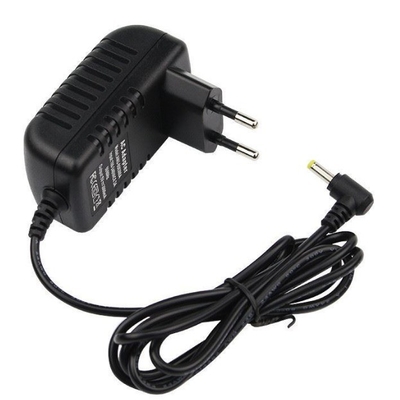

9W DC Output Type Power Adapter for Router C-Power AC100-240V 9V 1A 0.6A Performance

1) Input:   AC100V-240V

b) Frequency: 50/60Hz 1A

c) Line regulation range: ±0.5max.

2) Output: 9V 0.6A /9v 600mA

a) Line regulation range: ±0.5% max.

b) Ripple and noise (mVp-p): <1% of output voltage

c) Adjustable range of output voltage: +5%, -3%

d) Start-up time: ≤1s (AC input 240V and Io=100%)

e) Hold-up time: ≥20ms (AC input 240V and Io=100%)

3) Insulation resistance

Input---output: ≥50Mω

4) Environmental requirements:

a) Operating temperature: 0---40°C

b) Operating humidity: 10-90% RH (no freezing dew)

c) Storage temperature: -20----85°C

d) Storage humidity: 10-95% RH (no freezing dew)

5) Elevation: <3000m
