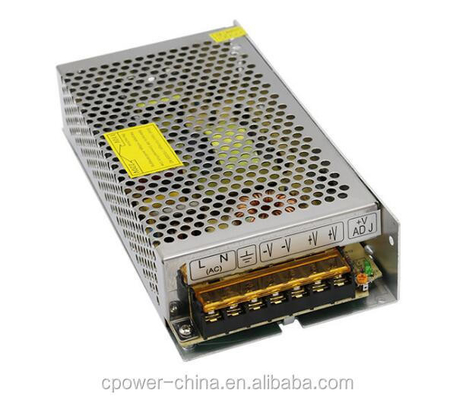

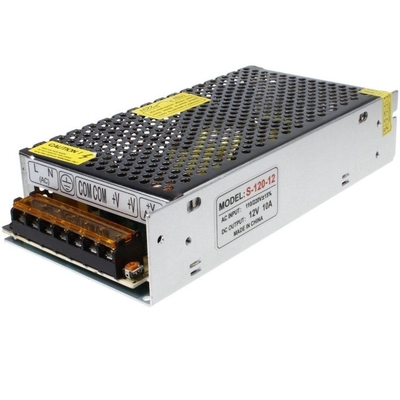

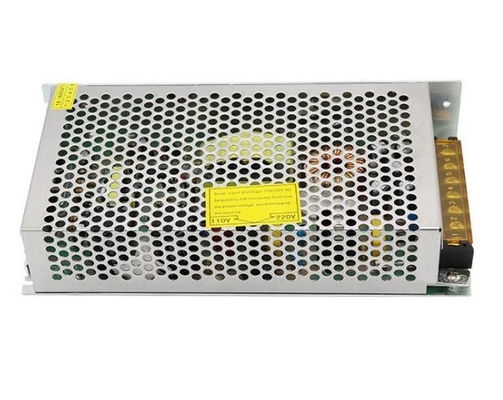

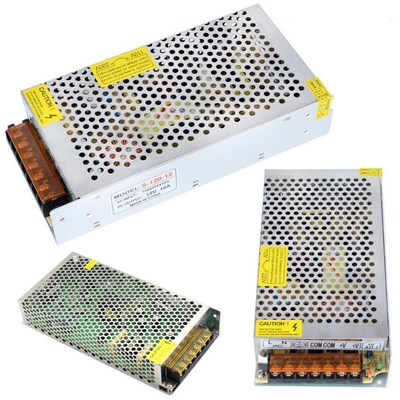

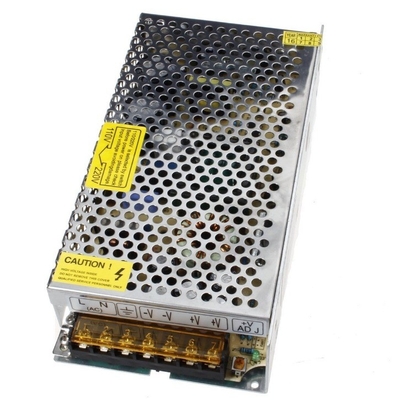

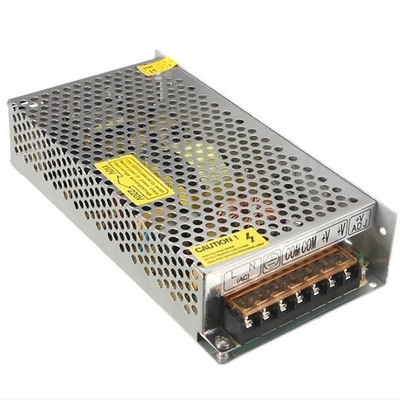

Switching Power Supply 12V DC 10A 120W for LED Lights Constant Voltage Transformer

I'm Online Chat Now

Switching Power Supply 12V DC 10A 120W for LED Lights Constant Voltage Transformer

Switching Power Supply 12V DC 10A 120W for LED Lights Constant Voltage Transformer
Switching Power Supply 12V DC 10A 120W for LED Lights Constant Voltage Transformer Switching Power Supply 12V DC 10A 120W for LED Lights Constant Voltage Transformer Switching Power Supply 12V DC 10A 120W for LED Lights Constant Voltage Transformer Switching Power Supply 12V DC 10A 120W for LED Lights Constant Voltage Transformer Switching Power Supply 12V DC 10A 120W for LED Lights Constant Voltage Transformer Switching Power Supply 12V DC 10A 120W for LED Lights Constant Voltage Transformer

Large Image :  Switching Power Supply 12V DC 10A 120W for LED Lights Constant Voltage Transformer

Product Details:
Place of Origin: Guangdong, China
Brand Name: C-Power
Certification: CE
Model Number: CP-120-12
Payment & Shipping Terms:
Minimum Order Quantity: 10 pieces
Price: $5.75/pieces 10-49 pieces

Switching Power Supply 12V DC 10A 120W for LED Lights Constant Voltage Transformer

Description
Output Type: Single Input Voltage: 110v/220v
Output Voltage: 12V Output Frequency: 47-63HZ
Output Current: 10A Application: LED Lighting
Warranty: 3 Years Type: Constant Voltage
Protection: Overload Product Name: Dc12 Power Supply
Efficiency: 86% Color: Silver
Power: 120w

Product Description



Features:

♦Universal AC input/Full range(up to 264VAC)

♦Protection: Short circuit/Overload/Over voltage/Over temperature

♦Built in PFC function, PF>0.95

♦Cooling by free air convection

♦Suitable for all kinds of LED lightings, and moving sign applications.

♦Built-in constant current limiting circuit (C.C.+C.V.mode);

♦Compliance to worldwide safety regulations for LED lightings



Product Specifications:

Input voltage

110V/220V AC

Input voltage Frequency

50/60Hz

Output voltage

12v

Output current

10A

Output power

120W

Power Factor

typical 0.95

THD

<10%

Power Efficiency

90%

Operation temp

-40-70°C(refer to output derating curve)

Storage temp

-40-85°C

Humidity

10-90%RH.





Switching Power Supply 12V DC 10A 120W for LED Lights Constant Voltage Transformer 0

Switching Power Supply 12V DC 10A 120W for LED Lights Constant Voltage Transformer 1



Safety Specifications :

over voltage protection: 120%min

over current protection: 120%min

over protection

Short-circuit protection: automatic recovery ­

Load regulation: ±5%

Green Circuit Design

High Efficiency



Environmental:

1. Adopts integrated device design, low temperature rise, low calorific value.

2. High stability, drive stable work, output current constant, no drift.

3. High security, suitable for high humidity, high dust, strong vibration environment of use;

Chip inside integrated over-voltage, over-current, overheat protective circuit.

4. Has the maximum output power limiting function, to avoid the impact of the LED.

5. Long use life design, normal life in 60,000 hours.

6. Pass through the corresponding temperature testing, aging test, efficacy test and short

circuit testing.

7.May be based on customer demand of custom-made related size and function driver module
