Product Details:
|
| Output Type: | Single | Input Voltage: | 110v/220v, 220V |
|---|---|---|---|
| Output Voltage: | 12V | Output Frequency: | 50/60Hz |
| Output Current: | 5a | Application: | LED Lighting |
| Warranty: | 3 Years | Product Name: | 12v Dc Switch Power Supply |
| Type: | Constant Voltage | Protections: | Short Circuit Overtemp Overload Overvolt |
| Efficiency: | 82% | Color: | Silver |
| Brand: | C-Power |
Features:

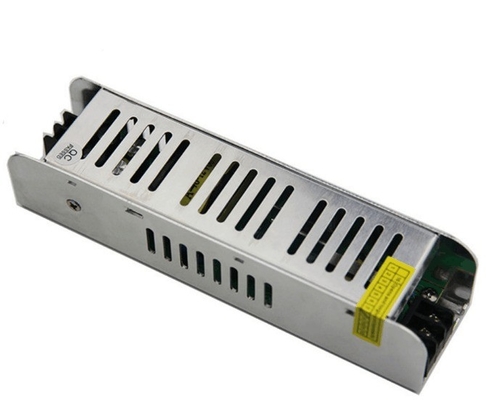

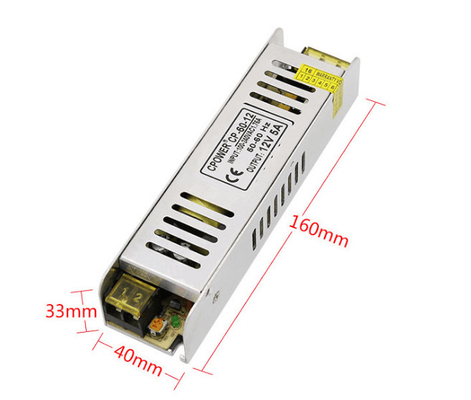

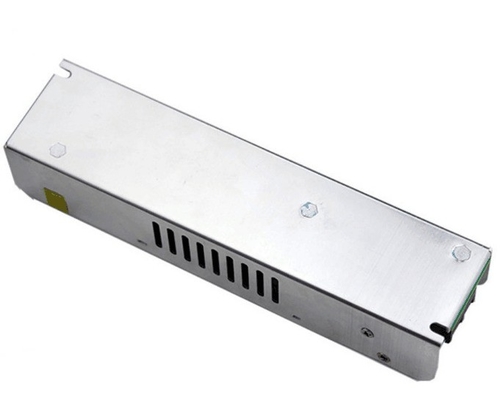

This listing is for one Sub-Mini Switching Power Supply Transformer Regulated LED Lighting 180-220V for CCTV Security Camera, LED.
Specification:
Condition:New
Power:12v 5A /8.3A/10A/12.5A/16.5A/20A/30A
Output Voltage: 12V/24v optional
Efficiency: 80%
Output Ripple Noise: 100mV
Output Voltage Accuracy: 10%
Load Regulation Rate: 5%
High quality and high performance.
Protections: overload/over voltage/short circuit.
About Calculate Method:
If Your LED Strip 60LEDs/m, and each LED 0.2W, then calculate max LED Strip Length: 0.2W/LED × 60LEDs/m=12W/m, for example,24W÷12W/m=2m, so, support the LED Strip(60LEDs/m, 0.2W/LED) Length (Max)=2m.
AC: Alternating Current
DC: Direct Current
L/N: Connect Alternating Current
-V (COM): Output Negative
+ V: Output Positive (The output polarity cann't be reversed.)
FG: Connect Ground Wire
ADJ: Output Voltage Trimmer
