AC 110V/220V TO DC  5V/12V/24V/36/42/48V  Switch Power Supply Driver Adapter For LED Strip Light, Monitoring power supply,  industrial power supply, etc.

We offer customize solution for your LED decoration. If you don't know how to match or what to buy, contact our customer service

before buying, please refer to the corresponding model "output voltage, current, power"

 due to the limited number of shelves, all models have a large number of spot,  need to buy more than please consult the company,

Please calculate actual power before using product to make sure its lifespan. It ‘s suggested that total power consumption of the loads to be connected be not more than 80% of the rate power of product

Range Of Difference:±1%

Efficiency: >80%

Output adjustable voltage range: ±3%

Frequency: 50-60Hz

Leakage current: <1mA/230V

Temperature coefficient: ±0.03%/℃(0~50℃)

Start, rise, hold time 200ms, 50ms, 20ms

Seismic resistance: 10~500Hz,2G 10min, /1 cycle, time 60 points, each axis

Protection: overload, overvoltage, overcurrent, short circuit protection

Pressure resistance between input and output 1.5KvAC input and shell; 1.5KvAC output and shell; 0.5KvAC

The working temperature and humidity are between -10 and +60, and the temperature ranges from 20% to 90%RH

The storage temperature and humidity are -20 ~ +85, 10% ~ 95%RH

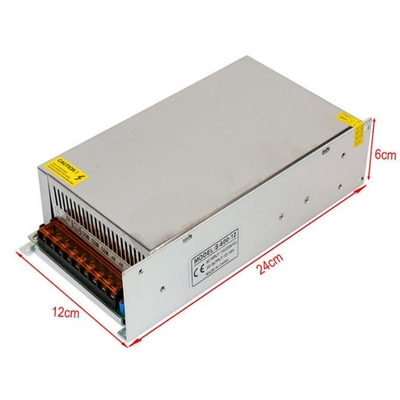

Product Size: 245*125*65mm

Product Weight: 1.52kg



1,Promotely reponse and fast production leadtime     2,Best pre-sale & after-sale service

3,Reliable products quality and good reputation         4,High manufacturing capacity

5.OEM/ODM
