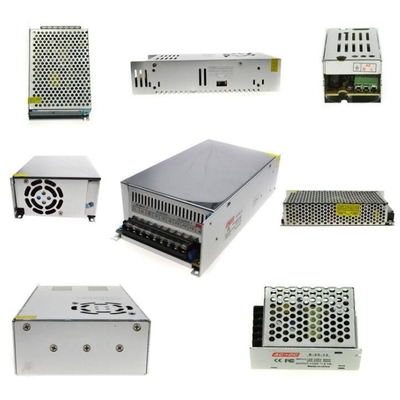

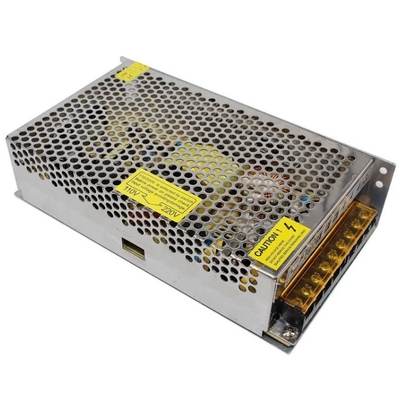

Product Details:
|
| Output Type: | Single | Input Voltage: | 110v/220v, 110V |
|---|---|---|---|
| Output Voltage: | 24VDC | Output Frequency: | 60HZ |
| Output Current: | 10A | Color: | Silver, Silver |
| Application: | LED Lighting Cctv | Product Name: | Switch Power Supply |
| Warranty: | 3 Years | Input: | 110v/220v Ac |
| Efficiency: | 82% | Output: | DC12V/24V/5v/36v/48v |
| Type: | Constant Voltage | Brand: | C-Power |
Features:
♦Universal AC input/Full range(up to 264VAC)
♦Protection: Short circuit/Overload/Over voltage/Over temperature
♦Built in PFC function, PF>0.95
♦Cooling by free air convection
♦Suitable for all kinds of LED lightings, and moving sign applications.
♦Built-in constant current limiting circuit (C.C.+C.V.mode);
♦Compliance to worldwide safety regulations for LED lightings
Product Specifications:
| Input voltage | 110V/220V AC |
| Input voltage Frequency | 50/60Hz |
| Output voltage | 24v |
| Output current | 2.5a |
| Output power | 60W |
| Power Factor | typical 0.95 |
| THD | <10% |
| Power Efficiency | 90% |
| Operation temp | -40-70°C(refer to output derating curve) |
| Storage temp | -40-85°C |
| Humidity | 10-90%RH. |
Note:
1.This is a DC24V Power Supply Unit for professional use on LED lightning, Security Surveillance System, CCTV Security Camera, IP Camera, and etc.
2.Safety design with shortage protection, overload protection and auto voltage switching.
3.Regulated voltage & current output. This is a perfect choice to use as a LED Driver for all type of LED lighting 3.without flickering light & ensue the life span of your LED.
4.Full range of current output is possible for LED lighting with dimmable function.
5.Voltage output fine adjustment is available for different power condition.
About Calculate Method:
If Your LED Strip 60LEDs/m, and each LED 0.2W, then calculate max led Strip Length: 0.2W/LED × 60LEDs/m=12W/m, 24W(this listing)÷12W/m=2m,
So, Support the LED Strip(60LEDs/m, 0.2W/LED) Length (Max)=2m
Special Note:
This Power Supply Unit "DOES NOT" come with installation instruction, wiring cable,on/off switch, or screws.
Professional Installation of qualified electrician is highly recommended.
