Product Details:
Place of Origin: Guangdong, China
Brand Name: C-Power
Model Number: CP-26100SA3
Payment & Shipping Terms:
Minimum Order Quantity: 10 pieces
Price: $6.00/pieces 10-499 pieces
Packaging Details: Standard package within white retail box

110V/220V Input Switching Model 100W 36V DC Power Supply for Customer Requirements

Description
Output Type: Single Input Voltage: 110V/220V Ac
Output Voltage: 36v Dc Output Frequency: 50hz/60hz
Output Current: 3a Brand: C-Power
Power: 100w Color: Silver
Warranty: 3 Years Current: 3a
Type: Switch Power Supply Output: Customer's Requests
Protections: Short Circuit Overtemp Overload Overvolt Application: Electrical Appliances



Feature

1.Universal AC input / full range
2.Input Frequency 47-63Hz
3.low products cost, high quality level
4.100% aging test
5.AC input Voltage range: 110/220VAC±20%, Selected by switch
6. Short circuit / Overload Protection
7. Soft-start current , reduce the AC input Inrush
8. Installed with EMI filter, minimun wave
9. Small size, light weight, long life , high efficiency

   Model

CP-100-36

Output

DC output voltage

36V

Output voltage tolerance

±1%

Rated output current

3A

Output current

0~3A

Output power

100W

Ripple and noise

80mVp-p

DC adjustable range

±10%

Setup rise hold up time

50ms

Input

Input voltage range

85~132VAC 170~264VAC 47~63Hz, 240~370VDC

AC input current

6.5A/115V 4A/230V

Efficiency

82%

AC inrush current

Cold start current 25A/115V 50A/230V

Leakage current

<3.5mA/240VAC

Protection characteristic

Over load protection

105%~135%rated output power start the over load protection

Protection mode : cut off the output,auto-recovery

Over-voltage protection

115%-135% cut off the output,auto-recovery

Over-temp protection

Rectifier≥80°Ccut off the output ,auto-recovery

Fan ON/OFF control

≥55°C Fan start ,≤45°CFan off

Environment

Working temperature

-10°C~+60°C;20%~90%RH(please refer to the Load deduction curve)

Security

Withstand voltage

Between input and output:1.5KVACThe input and ground : 1.5KVACThe output and ground :0.5KVAC

Insulation resistance

Between input and output:The input and ground, the output and ground: 100M 0hms /500VDC

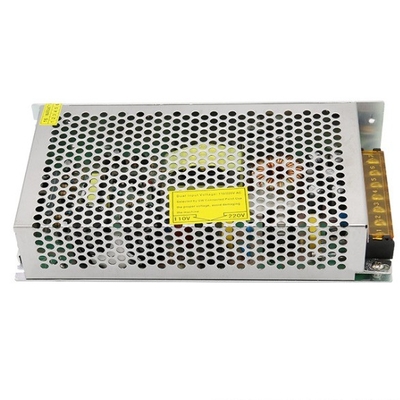

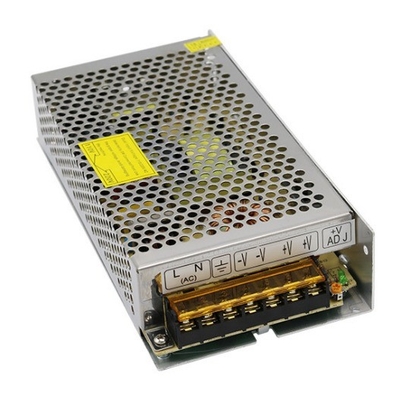

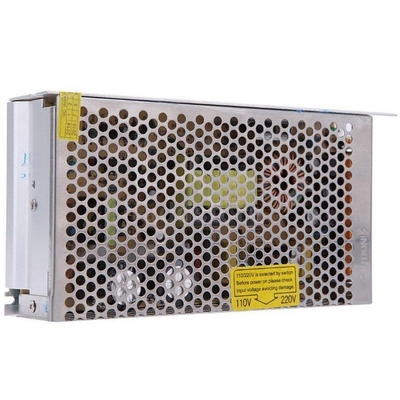

110V/220V Input Switching Model 100W 36V DC Power Supply for Customer Requirements 0110V/220V Input Switching Model 100W 36V DC Power Supply for Customer Requirements 1
