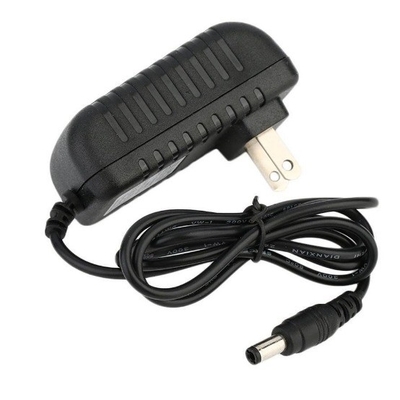

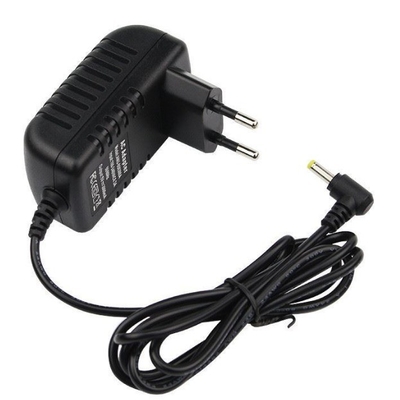

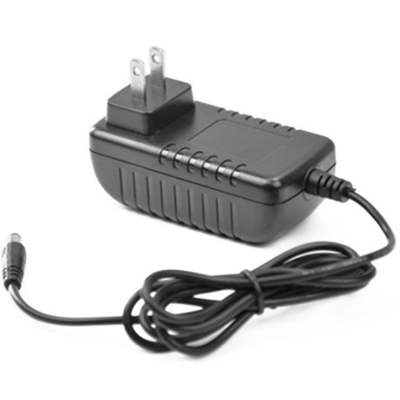

Product Details:
|
| Output Type: | DC | Connection: | Plug In |
|---|---|---|---|
| Warranty: | 3 Years | Certificate: | Ce |
| Color: | Black | Input: | AC 100-240v 50-60hz |
| DC Connector: | 5.5*2.1 5.5*2.5.etc (optional) | Efficiency: | 85% Min |
| DC Cable: | 1.2m 1.5m 1.8m 2m | Type: | Constant Voltage |
| Application: | LED Light. Electrical Appliances | DC Jack (plug): | 5.5*2.1*10/5.5*2.5*10mm / Customerized |
1) Input: AC100v~240v
b) Frequency: 50/60Hz 1A
c) Line regulation range: ±0.5max.
2) Output: 9V2000MA
a) Line regulation range: ±0.5% max.
b) Ripple and noise (mVp-p): <1% of output voltage
c) Adjustable range of output voltage: +5%, -3%
d) Start-up time: ≤1s (AC input 240V and Io=100%)
e) Hold-up time: ≥20ms (AC input 240V and Io=100%)
3) Insulation resistance
Input---output: ≥50Mω
4) Environmental requirements:
a) Operating temperature: 0---40°C
b) Operating humidity: 10-90% RH (no freezing dew)
c) Storage temperature: -20----85°C
d) Storage humidity: 10-95% RH (no freezing dew)
5) Elevation: <3000m
1,Promotely reponse and fast production leadtime 2,Best pre-sale & after-sale service
3,Reliable products quality and good reputation 4,High manufacturing capacity
5.OEM/ODM
