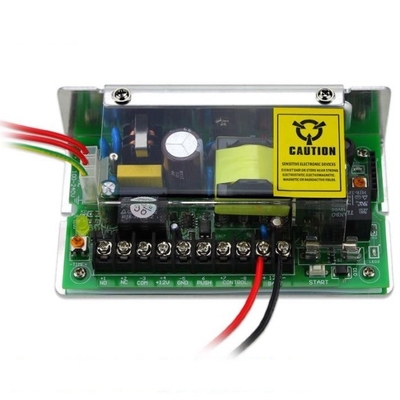

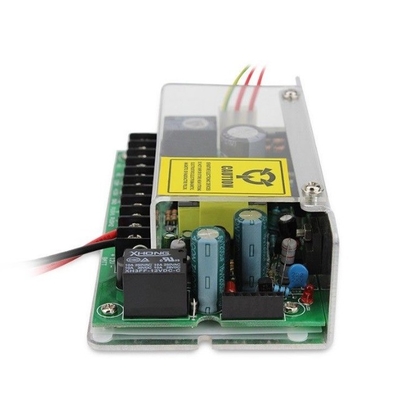

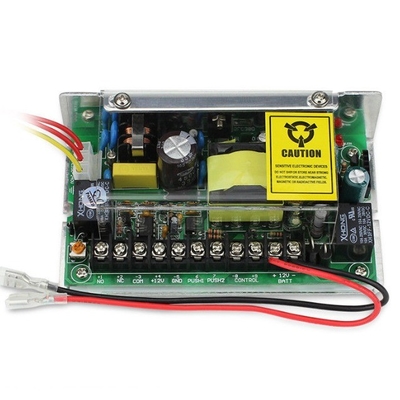

AC100-240V 60w UPS Access Control Power Supply for Door Control Output Voltage 12V DC

 Features:

• Set NC/NO outputs, can control various types of electric locks
• Based relay control circuit, lock time can be adjusted with 0 -15 seconds (Tips: Opening time must set to 0 second when connecting with electric controlled lock. Otherwise electric bolt lock would be Burned Down.)
• Automatic protection function for dangerous situation: overload / over voltage / short circuit
• Built-in remote module interface, remote control module can be inserted directly, in order to remote keyless entry for access control system
• Support external backpack battery 12V 7AH (Not included)

Specifications:

• Input Voltage: AC100-240V
• Input frequency: 50-60Hz
• Output Voltage: DC12V
• Output Current: 5A
• Output Voltage Accuracy: ±1
• Output Power: 50W
• Lock Delay: 0-15s
• Backup Battery: 12V storage battery, recommend 12V 7AH battery
• Remote Control Distance: 50m
• Dimensions: Approx. 133Lx73Wx45H(mm) / 5.24Lx2.87Wx1.77H(inch)
•
