Silver C-Power 120V Input AC 15A DC 12V 24V 5V 6V 9V 15V 350W 24V DC Power Supply

I'm Online Chat Now

Silver C-Power 120V Input AC 15A DC 12V 24V 5V 6V 9V 15V 350W 24V DC Power Supply

Silver C-Power 120V Input AC 15A DC 12V 24V 5V 6V 9V 15V 350W 24V DC Power Supply
Silver C-Power 120V Input AC 15A DC 12V 24V 5V 6V 9V 15V 350W 24V DC Power Supply Silver C-Power 120V Input AC 15A DC 12V 24V 5V 6V 9V 15V 350W 24V DC Power Supply Silver C-Power 120V Input AC 15A DC 12V 24V 5V 6V 9V 15V 350W 24V DC Power Supply

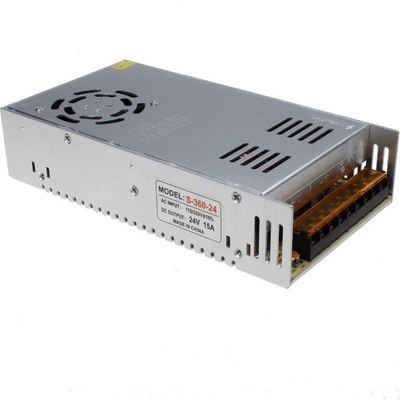

Large Image :  Silver C-Power 120V Input AC 15A DC 12V 24V 5V 6V 9V 15V 350W 24V DC Power Supply

Product Details:
Place of Origin: Guangdong, China
Brand Name: C-Power
Certification: ce
Model Number: CP-M2415360W
Payment & Shipping Terms:
Minimum Order Quantity: 5 pieces
Price: $7.20/pieces 5-499 pieces

Silver C-Power 120V Input AC 15A DC 12V 24V 5V 6V 9V 15V 350W 24V DC Power Supply

Description
Output Type: Single Input Voltage: 110V/220V AC
Output Voltage: 24V DC Output Frequency: 50/60HZ
Output Current: 15A Application: Electrical Appliances
Type: Constant Voltage Warranty: 3 Years
Product Name: 24v 15a Switch Power Supply Efficiency: 82%
Protections: Short Circuit Overtemp Overload Overvolt Color: Silver
Material: Aluminium Case Input: 100-240VAC 50/60Hz

Product Description



♦Universal AC input/Full range(up to 264VAC)

♦Protection: Short circuit/Overload/Over voltage/Over temperature

♦Built in PFC function, PF>0.95

♦Cooling by free air convection

♦Suitable for all kinds of LED lightings, and moving sign applications.

♦Built-in constant current limiting circuit (C.C.+C.V.mode);

♦Compliance to worldwide safety regulations for LED lightings



Product Specifications:

Input voltage

110V/220V AC

Input voltage Frequency

50/60Hz

Output voltage

24v

Output current

15a

Output power

360W

Power Factor

typical 0.95

THD

<10%

Power Efficiency

90%

Operation temp

-40-70°C(refer to output derating curve)

Storage temp

-40-85°C

Humidity

10-90%RH.

 Silver C-Power 120V Input AC 15A DC 12V 24V 5V 6V 9V 15V 350W 24V DC Power Supply 0Silver C-Power 120V Input AC 15A DC 12V 24V 5V 6V 9V 15V 350W 24V DC Power Supply 1Silver C-Power 120V Input AC 15A DC 12V 24V 5V 6V 9V 15V 350W 24V DC Power Supply 2







Safety Specifications :

over voltage protection: 120%min

over current protection: 120%min

over protection

Short-circuit protection: automatic recovery ­

Load regulation: ±5%

Green Circuit Design

High Efficiency



Environmental:

1. Adopts integrated device design, low temperature rise, low calorific value.

2. High stability, drive stable work, output current constant, no drift.

3. High security, suitable for high humidity, high dust, strong vibration environment of use;

Chip inside integrated over-voltage, over-current, overheat protective circuit.

4. Has the maximum output power limiting function, to avoid the impact of the LED.

5. Long use life design, normal life in 60,000 hours.

6. Pass through the corresponding temperature testing, aging test, efficacy test and short

circuit testing.

7.May be based on customer demand of custom-made related size and function driver module

Packaging & Shipping

 Silver C-Power 120V Input AC 15A DC 12V 24V 5V 6V 9V 15V 350W 24V DC Power Supply 3

Our Services

 Silver C-Power 120V Input AC 15A DC 12V 24V 5V 6V 9V 15V 350W 24V DC Power Supply 4

1,Promotely reponse and fast production leadtime     2,Best pre-sale & after-sale service

3,Reliable products quality and good reputation         4,High manufacturing capacity

5.OEM/ODM
