Product Details:
|
| Type: | Plug-In Charger, Fan-cooled | Use: | Scooter, Electric Car, Electr Bike |
|---|---|---|---|
| Is LED Lamp Illumination: | Yes | Output: | 72v, 87v |
| Output Power: | 580W | Input: | 100-240V/1.2A, 110V/220V |
| Application: | Car Power Charger | Material: | ABS |
| Keyword: | Faster Car Charger | Connector: | Request |
| Output Current: | 8a | Battery Type: | Rechargeable Lead Acid Battery |
| Function: | Charging Power |
Condition: 100% Brand New

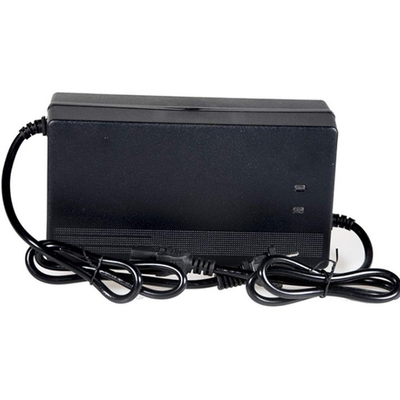

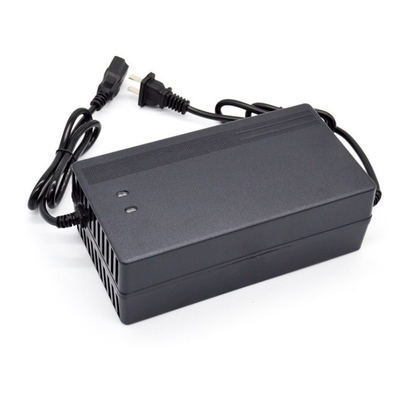

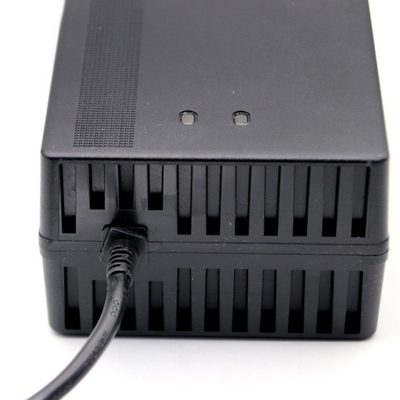

lithium battery charger 72v 8a
1. Nominal voltage : 87v
2. Nominal current: 8A
For 13 series lithium /Li-poly batterey
Application:electric bicycle,E-bike,electrical equipment,ect.
Technical data
Input voltage: 100-240V AC
Max. output voltage: 87V
Max. output current: 8A
Line frequency: 50-60Hz
Efficiency(at 100% load): >=85%
Ripple: <=1%*Vo
Temperature range: 0-45'C
Relative humidity: <65%
Protection
Over voltage protection
Over current protection
General specification
3-step charging control (pre-charge-CC-CV)
Option: a) NTC inside
b) 100% cut off when battery fully charged
Dual color LED indicator: (Charging:Red; Fully charged or no load:Green)
Light weight and compact
High efficiency and low power consumption
Environmental specification
Operating temperature: 0C ~ 45C
Storage temperature:-20C ~ 70C
Humidity < 65%
1,Promotely reponse and fast production leadtime 2,Best pre-sale & after-sale service
3,Reliable products quality and good reputation 4,High manufacturing capacity
5.OEM/ODM
