Product Details:
|
| Output Power: | 301 - 400W, 360W | Output Type: | Single |
|---|---|---|---|
| Output Frequency: | 47-63HZ | Output Current: | 30A |
| Input Voltage: | 220V | Application: | CCTV/LED Lighting/LED Monitor |
| Protections: | Short Circuit Overtemp Overload Overvolt | Ripple: | 150mVp-p |
| Warranty: | 3 Years | Price: | Factory Selling |

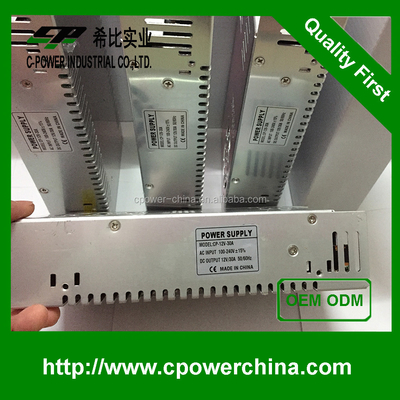

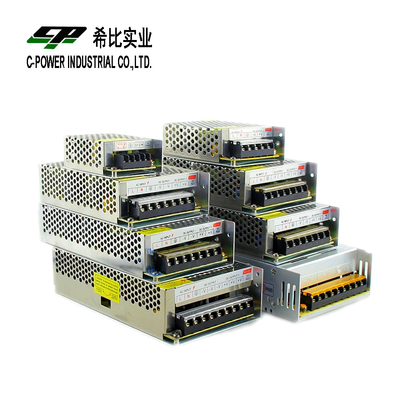

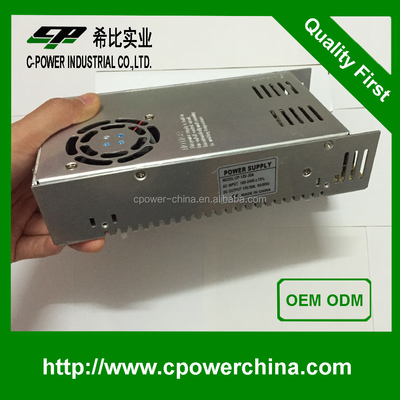

12v DC 30A 220v 110V 5V 12V 24V DC AC 12V 5A 10A 15A 20A 30A Switching Power Supply For LED CCTV
1. AC input range selectable by switch
2. Protections: Short circuit / Overload / Over voltage / Over temperature
3. 100% full load burn-in test
4. Low cost, high reliability
5. 2 years warranty
| OUTPUT | DC VOLTAGE | 12V |
| RATED CURRENT | 30A | |
| CURRENT RANGE | 0~30A | |
| RATED POWER | 360W | |
| RIPPLE & NOISE(max). | 150mVp-p | |
| VOLTAGE ADJ.RANGE | 0-5V | |
| VOLTAGE TOLERANCE | ±1.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGULATION | ±0.5% | |
| SETUP,RISE TIME | 1000ms, 50ms/230VAC 1000ms,50ms/115VAC at full load | |
| HOLD UP TIME(Typ.) | 20ms/230VAC 16ms/115VAC at full load | |
| INPUT | VOLTAGE RANGE | 90 ~ 132VAC / 180 ~ 264VAC by switch 254 ~ 370VDC |
| FREQUENCY RANGE | 47~63HZ | |
| EFFICIENCY(Typ.) | 87% | |
| AC CURRENT(Typ.) | 4.5A/115VAC 2.5A/230VAC | |
| INRUSH CURRENT(Typ.) | 40A/115VAC 55A/230VAC | |
| LEAKAGE CURENT | <3.5mA / 240VAC |
1,How many voltage can you supply?
-- 5V, 6.5V,9V 10V,12V, 13.5V, 15V, 18V, 19V, 24V 36V, 48V (depend on items)
2,How many current can you supply?
-- 0.5A, 1A,1.25A, 1.5A, 2A, 2.5A,3A, 3.42A,4A, 5A, 6A, 10A, 15A 20A, 30A, 40A, 50A, 60A
3,How about the quality?
-- We have the best professional and experienced engineer and strict QA and QC system. Repair rate under 1.1%-0.2%
4,Can we be your distributor?
-- We are looking for distributor and agent all over the world for switching power supply. Should you any interest, please feel free to send your message or inquiry.
5,What’s kind of payment you accept?
-- T/T, L/C, Paypal, Western Union,ect
6,What’s your MOQ?
-- 3000pcs, except for sample order or trial order.
1. How's your power supply and adapter quality?
-- 100% burn-in test, full-round tests. All products are CE approved, We promise less than 1% defetive within one year (history defetive rate is around 0.2% defetive in a year).If within 1% defetive, just show us inner unique serial number of defetive products and we can replace for free in the next order; if defective rate is higher than 5% because of product quality problem, will promise you to replace for free .
2. How's your factory production capacity?
-- we have around 300 workers and 6 automatical production lines; we can produce 10000pcs per day.
3. What's the shipping ways you can provide.
--We can ship by air or by sea from the port as requested.
