Product Details:
|
| Output Power: | 101 - 200W | Output Type: | Multiple |
|---|---|---|---|
| Input Voltage: | 110V/220V | Output Voltage: | 12V DC |
| Output Frequency: | 50/60HZ | Output Current: | 10A |
| Product Name: | Ups Power Supply Cctv | Application: | CCTV Camera |
| Efficiency: | 82% | Protection: | Over-temp |
| Protections: | Short Circuit Overload Overvolt Overtemp | Type: | Constant Voltage |
| Warranty: | 3 Years | Output: | 12V 10A |
| Material: | Aluminum Alloy |

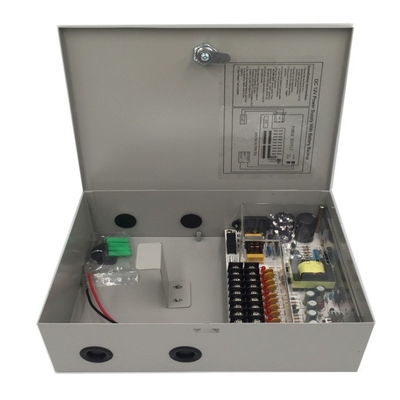

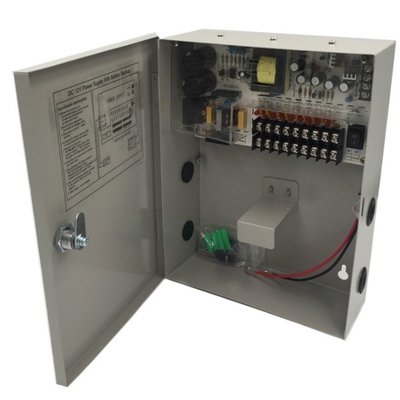

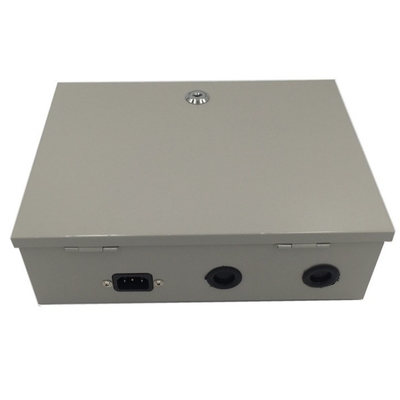

Designed for powering up to a maximum of Nine12V DC CCTV cameras. Each output is individually fused and can be set on or off via internal jumpers. There is a host of protection on each output to prevent spikes and surges damaging the connected cameras. Separate screw terminals are provided for each circuit. Overall output voltage can be internally adjusted from 11-14V DC. The design includes output current limiting and over voltage protection. Overall total max load is 10A. Housed in a sturdy compact steel enclosure with lockable door. Field wiring access is via a rear panel cutout or 3 conduit knockouts on the side.
Input:100~240v ac
Output:12v dc 10a
Power:120w
Channles:9
Features
1,Promotely reponse and fast production leadtime 2,Best pre-sale & after-sale service
3,Reliable products quality and good reputation 4,High manufacturing capacity
5.OEM/ODM
