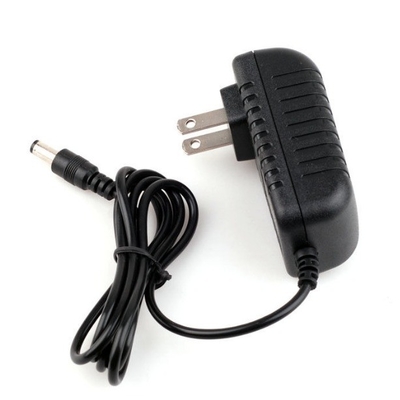

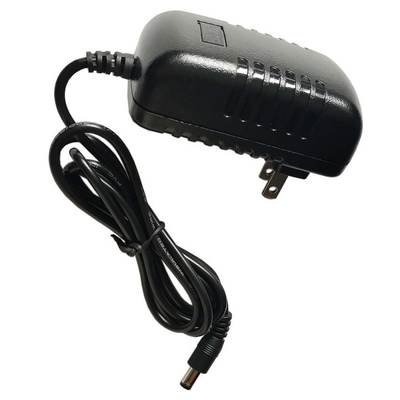

Product Details:
|
| Output Type: | DC | Connection: | Plug In |
|---|---|---|---|
| Input Voltage: | AC100~240V 50/60Hz | Certificate: | CE |
| Color: | Black | Warranty: | 3 Years |

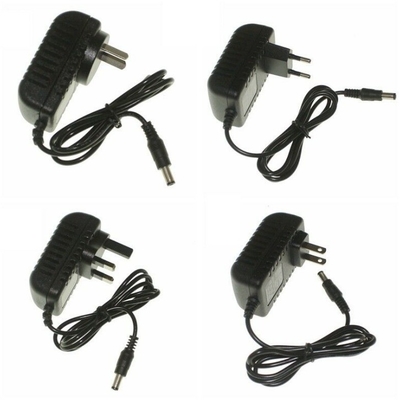

| Type: | AU Wall Mount | Input: | AC 100-240v 50-60hz |
| Output Voltage: | 19VDC | Power: | 19W |
| Output: | 12v 15v 5v 19v 24v | DC Connector: | 5.5*2.5mm / 5.5*2.1mm/Coaxial Connector |
♦Universal AC input/Full range(up to 264VAC)
♦Protection: Short circuit/Overload/Over voltage/Over temperature
♦Built in PFC function, PF>0.95
♦Cooling by free air convection
♦Suitable for all kinds of LED lightings, and moving sign applications.
♦Built-in constant current limiting circuit (C.C.+C.V.mode);
♦Compliance to worldwide safety regulations for LED lightings
Product Specifications:
| Input voltage | 110V/220V AC |
| Input voltage Frequency | 50/60Hz |
| Output voltage | 19v |
| Output current | 1a |
| Output power | 19W |
| Power Factor | typical 0.95 |
| THD | <10% |
| Power Efficiency | 90% |
| Operation temp | -40-70°C(refer to output derating curve) |
| Storage temp | -40-85°C |
| Humidity | 10-90%RH. |
1,Promotely reponse and fast production leadtime 2,Best pre-sale & after-sale service
3,Reliable products quality and good reputation 4,High manufacturing capacity
5.OEM/ODM
