Product Details:
|
| Output Type: | Single | Input Voltage: | 110v/220v |
|---|---|---|---|
| Output Voltage: | 70v Dc | Output Frequency: | 50hz/60hz |
| Output Current: | 11.5a | Product Name: | Swtiching Power |
| Type: | Constant Voltage | Application: | Industrial Automation |
| Warranty: | 3 Years | Color: | Silver |
| Output: | 70v Dc | Material: | Aluminum Alloy |
| Efficiency: | 86% | Input: | 100-240VAC 50/60Hz |
Features:
♦Universal AC input/Full range(up to 264VAC)
♦Protection: Short circuit/Overload/Over voltage/Over temperature
♦Built in PFC function, PF>0.95

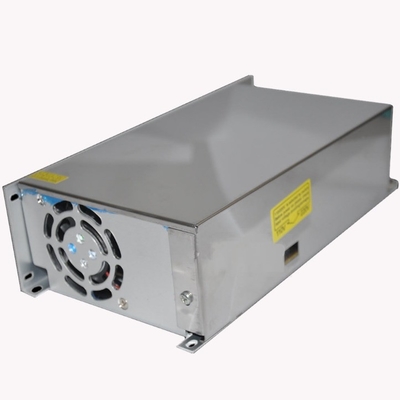

♦Cooling by free air convection
♦Suitable for all kinds of LED lightings, and moving sign applications.
♦Built-in constant current limiting circuit (C.C.+C.V.mode);
♦Compliance to worldwide safety regulations for LED lightings
Product Specifications:
| Input voltage | 110V/220V AC |
| Input voltage Frequency | 50/60Hz |
| Output voltage | 70v |
| Output current | 11.5a |
| Output power | 800W |
| Power Factor | typical 0.95 |
| THD | <10% |
| Power Efficiency | 90% |
| Operation temp | -40-70°C(refer to output derating curve) |
| Storage temp | -40-85°C |
| Humidity | 10-90%RH. |
Safety Specifications :
over voltage protection: 120%min
over current protection: 120%min
over protection
Short-circuit protection: automatic recovery
Load regulation: ±5%
Green Circuit Design
High Efficiency
1,Promotely reponse and fast production leadtime 2,Best pre-sale & after-sale service
3,Reliable products quality and good reputation 4,High manufacturing capacity
5.OEM/ODM
