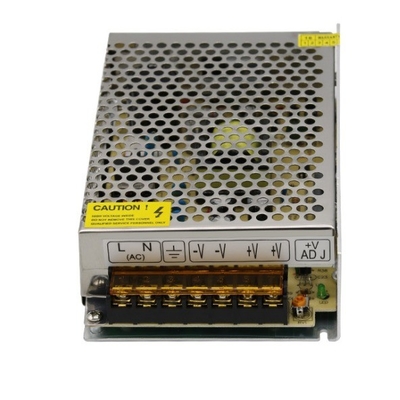

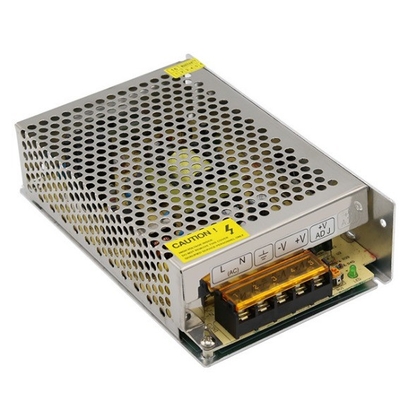

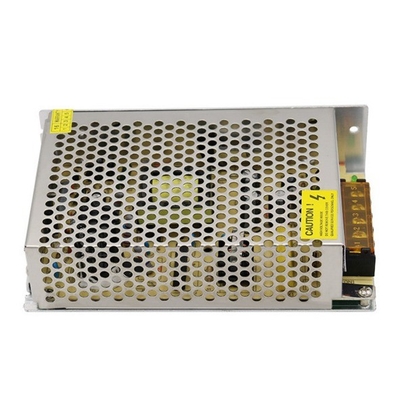

Product Details:
|
| Output Type: | Single | Input Voltage: | AC110V/220V |
|---|---|---|---|
| Output Voltage: | 36V | Output Frequency: | 50/60HZ |
| Output Current: | 5.6A | Type: | Constant Voltage |
| Warranty: | 3 Years | Application: | Industrial Automation |
| Efficiency: | 86% | Color: | Silver |
| Power: | 200w | Material: | Aluminum Alloy |
| Output: | 36vdc | Input: | 100-240VAC 50/60Hz |
Features:
♦Universal AC input/Full range(up to 264VAC)
♦Protection: Short circuit/Overload/Over voltage/Over temperature
♦Built in PFC function, PF>0.95
♦Cooling by free air convection
♦Suitable for all kinds of LED lightings, and moving sign applications.
♦Built-in constant current limiting circuit (C.C.+C.V.mode);
♦Compliance to worldwide safety regulations for LED lightings
Product Specifications:
| Input voltage | 110V/220V AC |
| Input voltage Frequency | 50/60Hz |
| Output voltage | 36v |
| Output current | 5.6a |
| Output power | 200W |
| Power Factor | typical 0.95 |
| THD | <10% |
| Power Efficiency | 90% |
| Operation temp | -40-70°C(refer to output derating curve) |
| Storage temp | -40-85°C |
| Humidity | 10-90%RH. |
Safety Specifications :
over voltage protection: 120%min
over current protection: 120%min
over protection
Short-circuit protection: automatic recovery
Load regulation: ±5%
Green Circuit Design
High Efficiency
1,Promotely reponse and fast production leadtime 2,Best pre-sale & after-sale service
3,Reliable products quality and good reputation 4,High manufacturing capacity
5.OEM/ODM
