Product Details:
|
| Output Type: | DC | Connection: | Plug In |
|---|---|---|---|
| Certificate: | Ce | Warranty: | 3years |
| Application: | CCTV Product | Efficiency: | 88% Min |
| Input: | 100-240VAC 50/60HZ | Output: | 48v Dc |
| Output Current: | 0.5a | Color: | Black |
| Product Name: | POE Power Adapter | Brand: | C-Power |

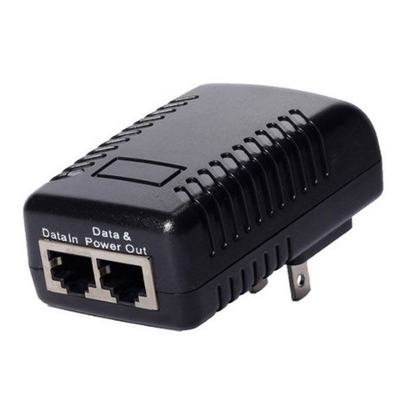

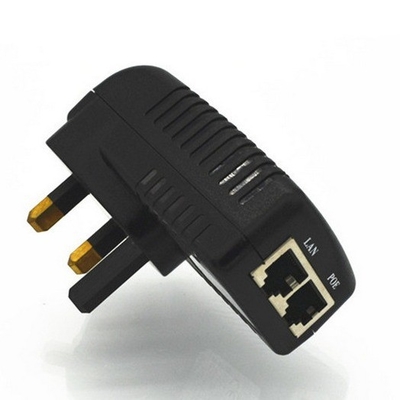

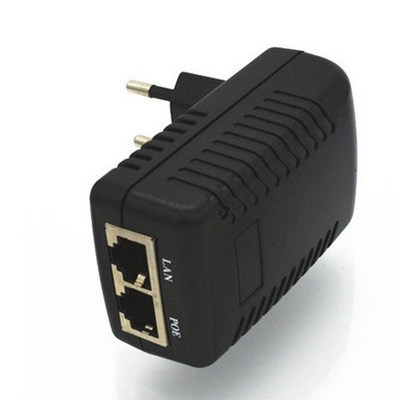

48V-0.5A Wall Plug POE Injector Ethernet Adapter Security IP Camera Power Supply
A perfect solution for applications where an electrical outlet may not be available
the injector adapter can be used to power PoE-enabled devices such as IP cameras or Wireless Access Points (WAPs).
The compact, wall-mountable design makes it easy to install the adapter into areas where space is limited
And can be installed in seconds with no configuration required.
Applications:
IP Phone
Wireless Access Point and Client Devices
Security Camera Systems
specifications:
Output 48V DC 500mA - Please do not order if your unit requires more than 500 MilliAmps
Input 100-240V
Output 48V-0.5A
Input Current 1A
Turn-On Delay 2 Seconds Max
Rise Time 40 mS Max
Protections Auto Recover Over-Voltage, Short Circuit, Over-Current
Operating Temperature -10 to +40°C (14 to +104°F)
Operating Humidity (RH) 5% - 90%
Storage Temperature -20 to +85°C (-4 to +185°F)
Network Connector Type RJ45 Shielded
POE Type Passive POE ( Pins 4,5 V+, Pins 7,8 V-)
1,Promotely reponse and fast production leadtime 2,Best pre-sale & after-sale service
3,Reliable products quality and good reputation 4,High manufacturing capacity
5.OEM/ODM
