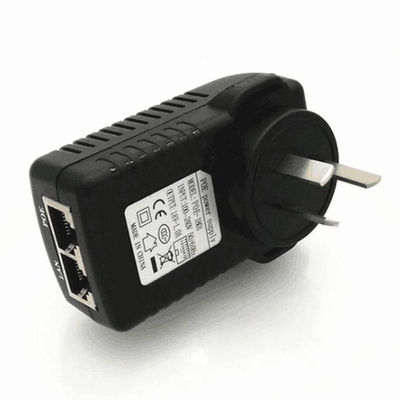

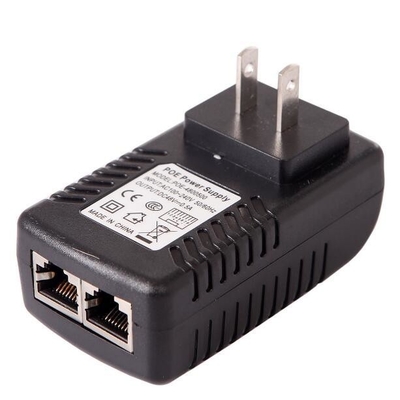

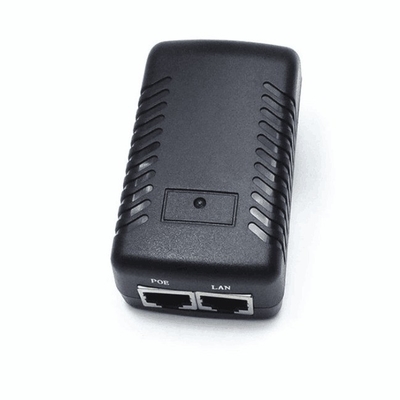

POE Injector Ethernet Adapter 48V 500mA Wall Plug for Power Supply of IP Phone/Camera

48V 0.5A WALL PLUG POE INJECTOR - COMPATIBLE WITH AASTRA,CISCO,POLYCOM AND MORE VOIP PHONES

FEATURES:

• REMOTELY POWER EQUIPMENT THRU CAT5 CABLE UP TO 100M
• AUTORANGING SWITCHING POWER SUPPLY 100-240VAC
• SHORT CIRCUIT, OVER CURRENT AND OVER VOLTAGE PROTECTION
• POWERFUL 48V 0.5A,24W PASSIVE PoE OUTPUT
• CE CERTIFIED, MEETS RoHS REQUIREMENTS
• COMPACT SIZE-CONVENIENT WALL PLUG DESIGN

APPLICATIONS:

• IP PHONE
• WIRELESS ACCESS POINTS AND CLIENT DEVICES
• SECURITY CAMERA SYSTEMS

SPECIFICATIONS:

Output: 48V DC 500mA - Please do not order if your unit requires more than 500 Milli Amps
Input:100v~240v
Efficiency: 80% Min
Line / Load Regulation: 3% / 5%
Ripple / Noise: 200mV p-p
Turn-On Delay: 2 Seconds Max
Rise Time: 40 mS Max
Protections : Auto Recover Over-Voltage, Short Circuit, Over-Current
Environmental Standards: RoHs
Operating Temperature: -10 to +40°C (14 to +104°F)
Operating Humidity (RH): 5% - 90%
Storage Temperature: -20 to +85°C (-4 to +185°F)
Case Dimensions: 83 x 44.5 x 34.3 mm (3.25 x 1.75 x 1.35”)
AC Plug Type:AU.US.UK.EU

Network Connector Type: RJ45 Shielded
POE Type: Passive POE ( Pins 4,5 V+, Pins 7,8 V-)
