Product Details:
|
| Output Type: | Single | Input Voltage: | 110v/220v, 220V |
|---|---|---|---|
| Output Voltage: | 12V | Output Frequency: | 50/60Hz |
| Output Current: | 10A | Application: | LED Lighting Cctv |
| Warranty: | 3 Years | Product Name: | 12VDC Cctv Power |
| Protection: | Over-temp | Efficiency: | 82% |
| Name: | 12V 10a | Brand: | C-Power |
| Power: | 120w |
Features:
- Double chipset innovation provides constant true voltage automatically with low consumption.
- Built with input/output overvoltage protection, input/output overcurrent protection, over temperature
protection, over power protection and short circuit protection.
-Output power range is 100W- 400W. The normal operating rate is up to 95% and 82% as minimum. Bulitd in EMI filter and anti-jamming performance.AC inrush curretnt limiting, output small ripple with little noise, high efficency. This supply box is with good stablility output filter, low consuption and enerdy saving.

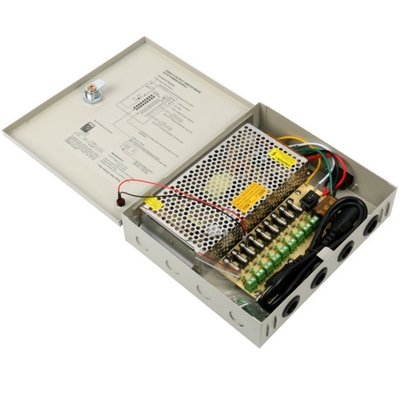

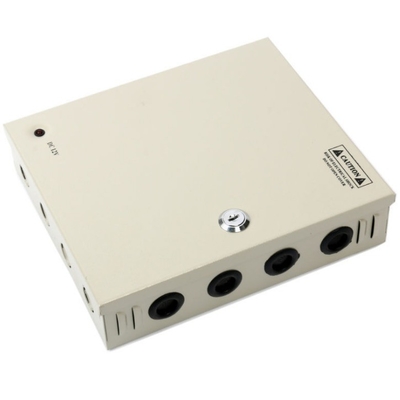

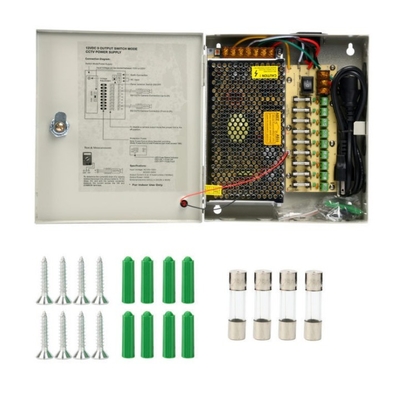

Specification: 12v 10a 9CH Power Supply Box
|
OUTPUT | DC VOLTAGE | 12V |
| OUTPUT POWER | 120W | |
| CURRENT RANGE | 0-0.55Amp Each channel , Total 0-10Amp for 9 channels | |
| RIPPLE & NOISE(max.) | 240mVp-p | |
| VOLTAGE ADJ. RANGE | ±10% | |
| LINE REGULATION | ±1.0% | |
| LOAD REGULATION | ±2.0% | |
| VOLTAGE TOLERANCE | ±2.0% | |
| SETUP,RISE TIME | 800ms, 50ms at full load | |
| HOLD UP TIME | 60ms | |
|
INPUT | INPUT | VOLTAGE RANGE |
| AC CURRENT(Typ.) | 1.3A/115V 0.65A/230V | |
| FREQUENCY RANGE | 47-63Hz | |
| EFFICIENCY(Typ.) | 78% | |
| INRUSH CURRENT(Typ.) | COLD START 18A/115VAC 36A/230VAC | |
| LEAKAGE CURRENT | <1.0mA/240VAC | |
|
SAFTY & EMC | SAFTY & EMC | SAFTY STANDARDS |
| WITHSTAND VOLTAGE | I/P-O/P:1.5KVAC, I/P-FG:1.5KVAC, O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG,O/P-FG: 100M Ohms/ 500VDC | |
| EMI CONDUCTION | Compliance to EN55022 | |
| HARMONIC CURRENT | Compliance to EN61000-3-2,-3 | |
| EMS IMMUNITY | Compliance to EN55024 | |
|
Other |
Application | 1.Digital and electronic products |
| 2.LED, CCTV supervisory system | ||
| 3.CCTV monitoring camera |
1,Promotely reponse and fast production leadtime 2,Best pre-sale & after-sale service
3,Reliable products quality and good reputation 4,High manufacturing capacity
5.OEM/ODM
