Product Details:
|
| Output Type: | Single | Input Voltage: | 110v/220v |
|---|---|---|---|
| Output Voltage: | 12V | Output Frequency: | 50/60Hz |
| Output Current: | 5A | Color: | Grey |
| Application: | CCTV Camera | Warranty: | 3 Years |
| Product Name: | 12VDC Cctv Power | Type: | Constant Voltage |
| Protection: | Over-voltage | Efficiency: | 82% |
| Name: | CCTV Power Supply Box | Brand: | C-Power |
| Power: | 60w | Output Power: | 60w |
| Port: | Shenzhen |
Output Voltage : DC 12 V
Output Current : 5A
Fuse Type : PTC Resetable
Fuse Rating : 1.1 A

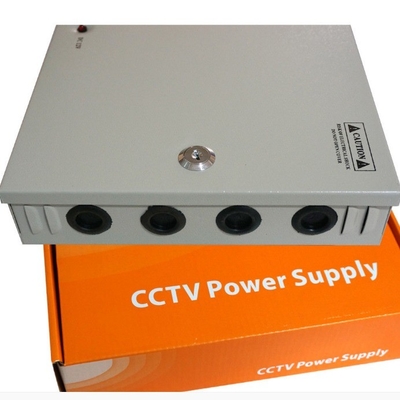

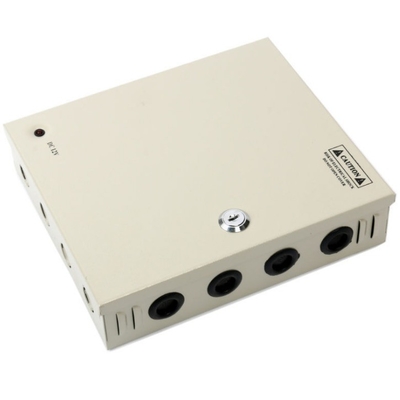

DC 12V 5.0 Amper Power BOX For electronic devices, like CCTV security cameras.CAN SUPPORT UP TO 9 CAMERAS.
Regulated output protects your electronic devices from over voltage damages, and increase life of electronic circuits and products you are using with.
Perfect for any electronic products...
Use it with For Security Cameras, DVR's etc.
Condition: Brand New in Box.
| Input Voltage Frequency | 50/60Hz |
| Output Spcification | |
| Output Voltage | 12 VDC+2% |
| Total Output Current | 5A (9CH→1A,,meet for different cameras) |
| Total Outputs | 60W |
| Fuse Type | Glass Fuse |
| Fuse Rating | 1 Amps / 250VAC |
| Protection | |

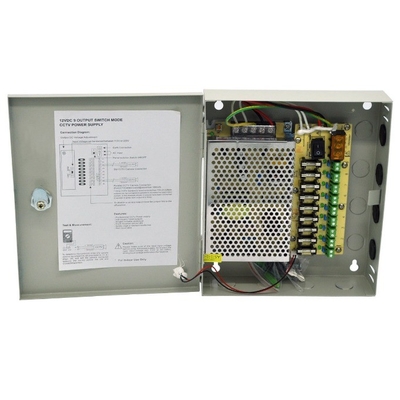

| General Protection | each output has individual fuse and LED indicator, when problem occurs,only affect the individual output, other outputs still working |
| Circuit Short Protection | when short condition occurs, individual fuse will open the circuit,when condition removed, replacing another new fuse will back to close. |
| Overload proctection | 105%-150% hiccup mode,auto-recovery |
| General Specifications | |
| Working temperature and humidity | -10~+60Refer to output derating curve,20%~90%RH |
| Store temperature and humidity | -20~+85,10%~95%RH |
| Application | |
| CCTV | Camera, PTZ, IR Illuminators, Video Process Equipment, |
