Product Details:
Place of Origin: China
Brand Name: C-Power
Certification: CE FCC ROHS
Model Number: CP-PSU18CH-12VDC30A
Payment & Shipping Terms:
Minimum Order Quantity: 10 pieces
Price: $200.00/pieces
Packaging Details: 10PCS/CTN <br> <br>22KG/CTN <br> <br>1. Individual box in color box . <br>2. Strong and solid carton for overseas shipping; <br>3. Packages can be OEM or ODM. <br>4. Delivery time: 1-2 days for stock, about 1 week if no stock. <br>5. Can ship by air or

Protections Short Circuit Overtemp Overload Overvolt 12V 30A Power Supply Box for CCTV

Description
Output Type: Multiple Input Voltage: 220v
Output Voltage: 12V Output Frequency: 50/60Hz
Output Current: 30A Application: CCTV Camera
Warranty: 3 Years Type: Constant Voltage Mode Power
Protections: Short Circuit Overtemp Overload Overvolt Efficiency: 90%
Payment: TT Service: Customised OEM ODM
Style: 12v 30a 18ch Switching Power Supply

Product Description

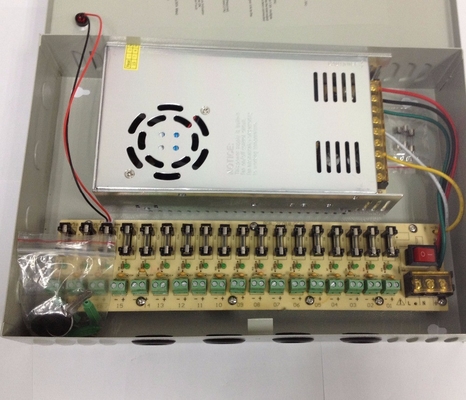

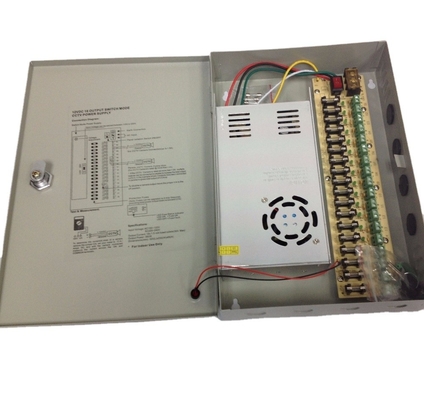

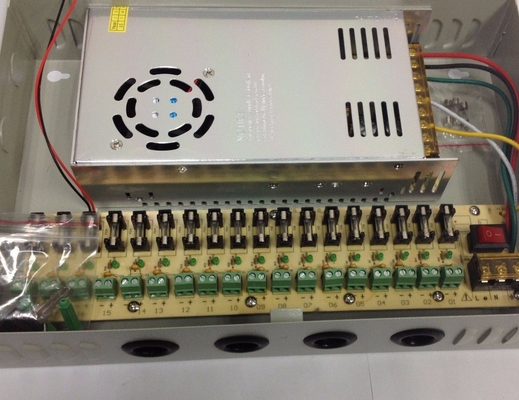

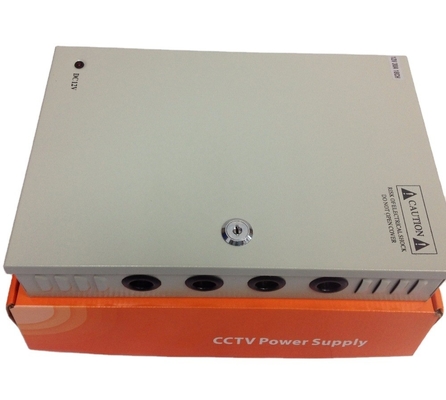

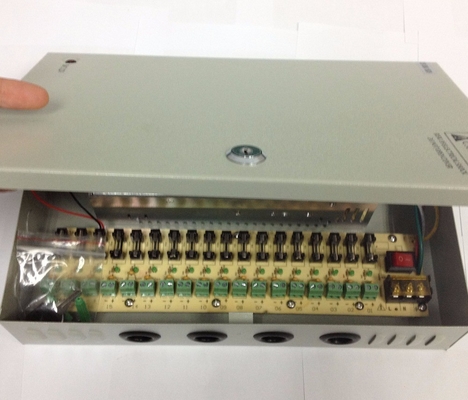

Best Quality 12V 30A  Power Supply 18Ch PSU For CCTV Camera Box with Auto Reset fused



Input Voltage : AC 110V or 240V Input Voltage Frequency : 50/60Hz

Output Voltage : DC 12V +/-5% Total Output Current : 12V 30A 18 Fuse



Output Output 12V DC 30A 18 channels output
Max power 360W
Output voltage DC 12V + / - 5%
Ripple wave (mVp-p): <1%
Linear modulate ±0.5%max
Temperature coefficient ±0.02%/
Start time 3s(240VAC input,io=100%)
Guard time 20ms(240VAC input,io=100%)
Output standard 12V 10A, 18 channels Output
Protection Override protection 115%-200%vA,automatic recovery
short-circuit protection 1 channel: automatic recovery
Insulation Insulation strength 1500VAC/10mA,1MIN
Insulation resistance 30MΩ,DC 500V
Environment Working temperature 0-40,10%-90%RH
Store temperature -20-60,10%-90%RH



Protections Short Circuit Overtemp Overload Overvolt 12V 30A Power Supply Box for CCTV 0Protections Short Circuit Overtemp Overload Overvolt 12V 30A Power Supply Box for CCTV 1



Protections Short Circuit Overtemp Overload Overvolt 12V 30A Power Supply Box for CCTV 2

Packaging & Shipping

1. Individual box in color box .
2. Strong and solid carton for overseas shipping;
3. Packages can be OEM or ODM.
4. Delivery time: 1-2 days for stock, about 1 week if no stock.
5. Can ship by air or by sea or send to buyers' shipper/partners



Also,we offer the palletized delivery to our honourable customer by sea.

The palletized delivery detail as following:

Protections Short Circuit Overtemp Overload Overvolt 12V 30A Power Supply Box for CCTV 3

Protections Short Circuit Overtemp Overload Overvolt 12V 30A Power Supply Box for CCTV 4
