Product Details:
|
| Output Power: | 301 - 400W | Output Type: | Multiple |
|---|---|---|---|
| Input Voltage: | 110V/220V AC | Output Voltage: | 12V DC |
| Output Frequency: | 50/60HZ | Output Current: | 20A |
| Product Name: | Ups Cctv Power Supply | Application: | Electrical Appliances |
| Warranty: | 2 Years | Efficiency: | 82% |
| Protections: | Shortcuit Overtemp Overload Overtemp | Type: | Constant Voltage |
| Color: | Grey | Output: | 18 Channel Output |
| Input: | 100-240V AC 50/60Hz |

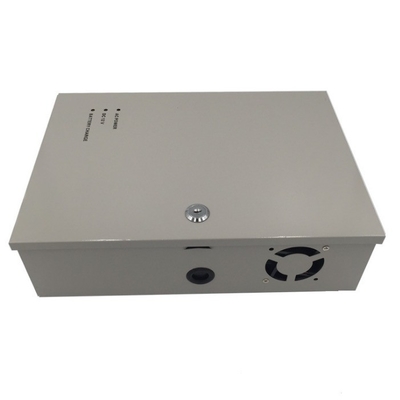

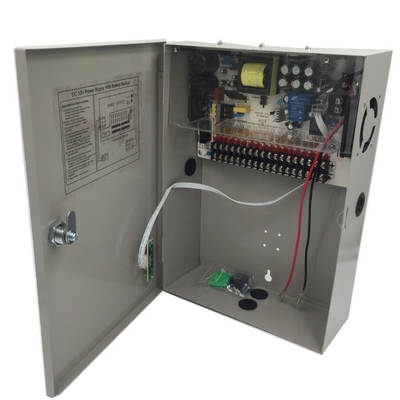

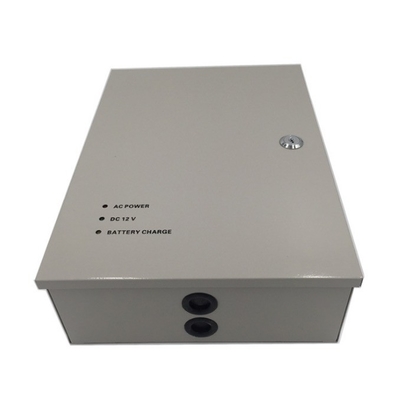

Designed for powering up to a maximum of 18 ch 12V DC CCTV cameras. Each output is individually fused and can be set on or off via internal jumpers. There is a host of protection on each output to prevent spikes and surges damaging the connected cameras. Separate screw terminals are provided for each circuit. Overall output voltage can be internally adjusted from 11-14V DC. The design includes output current limiting and over voltage protection. Overall total max load is 20A. Housed in a sturdy compact steel enclosure with lockable door. Field wiring access is via a rear panel cutout or 3 conduit knockouts on the side.
Input:110v/220v ac
Output:12v 20a
Channels:18ch
Features
1,Promotely reponse and fast production leadtime 2,Best pre-sale & after-sale service
3,Reliable products quality and good reputation 4,High manufacturing capacity
5.OEM/ODM
