Product Details:
|
| Color: | Black | Type: | Adapter |
|---|---|---|---|
| Material: | Copper | Usage: | CCTV Camera |
| Connector A: | Coaxial BNC Female | Connector B: | Coaxial BNC Male |
| UPC: | Does Not Apply | Port: | Shenzhen |
Spec

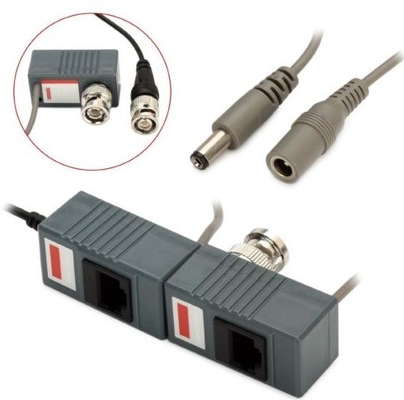

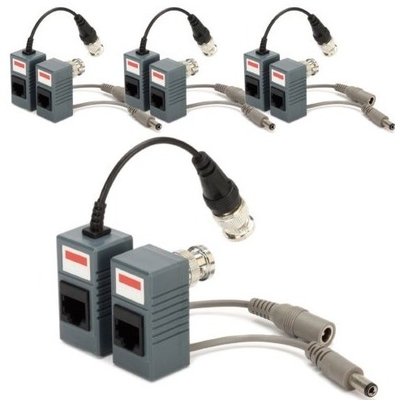

1CH Passiv Power ideo
/DATE PVD Video Transceiver
Video Frequency respons: DC-6Mhz Common-mode/Differential-mode Rejection: 15khz –6Mhz 60dB typ 60dB typ
Audio/data YES
Power NO
Impedance Coax,male BNC:75ΩUTP(Screwless)Terminal Block or UTP RJ45 Data Connector:100Ω
Wire type One Unshielded Twisted Pair 24-16AWG(0.5-1.31mm) Per video signal:DC Loop Resistance 52 ohms per 1,000 ft(18 ohms per 100m)
Surge suppression --------------
Control NO
UTP Port RJ45
Dimensions(mm) 43*20*2.1
Weigth(g) 35
Environment Temperature:-10~+50℃ Humidity: 0~95%
1,Promotely reponse and fast production leadtime 2,Best pre-sale & after-sale service
3,Reliable products quality and good reputation 4,High manufacturing capacity
5.OEM/ODM
