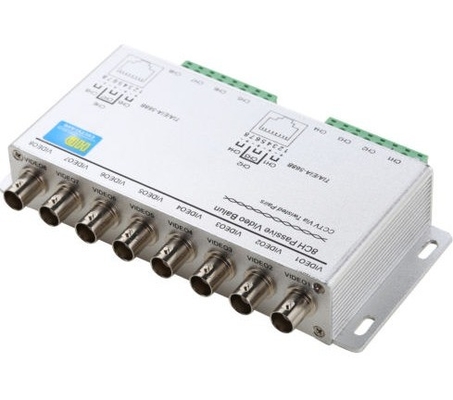

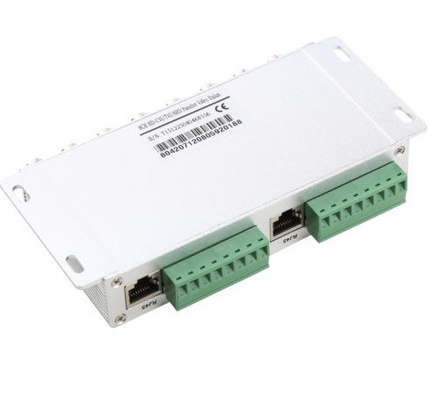

HD CVI AHD TVI Compatible 8CH Passive Video Balun Receiver Transmitter for CCTV Camera

• Compatible with all HD-CVI,HD-TVI,HD-AHD
• Up to 450m for 720P CVI Cameras
• Up to 250m for 1080P CVI Cameras
• Up to 250m for 720P/1080P TVI Cameras
• Up to 320m for 720P AHD Cameras
• Up to 250m for 1080P AHD Cameras
• NTSC,PAL,and SECAM video formats
• No power required
• 60dB cross talk and noise immunity
• Built-in transient suppression protection

Technical Specifications:

• Frequency response: DC to 60Mhz
• Attenuation: 0.5dB type
• CMRR: 60dB
• Surge protection: 4KV
• ESD: 8KV
• Impedance: BNC: 75ohms, RJ45: 100ohms
• Working Temperature: -10℃ to +70℃
• Storage Temperature: -30℃ to +70℃
• Humidity: 0-95%
• External dimension: 157mm*65mm*29mm / 6.18'' x 2.56'' x 1.14'' (excluding connectors)
• Weight: 340g
• Type of the required wire:

  • Unshielded Cat-5 or above twisted pair wire(please use standard Cat-5 or above twisted pair wire. The wire quality will directly affect the transmitted image effect and transmission distance.)
  • Characteristic impedance: 100Ω±20Ω
  • DC loop resistance: 18Ω/100m
  • Differential capacitance:62pf (Maximum)



  Connection method:
  • Clamp modular plugs for a Cat-5 unshield twisted pair wire according to the connection order of TIA-EIA-568B, connect the clamped modular plugs to the RJ45 socket,connect the coax to the BNC.
  •
